AirLive announces its new multifunctional outdoor wireless CPEs AirMax5N and AirMax5N ESD

The network and communication equipment manufacturer AirLive has added to its product catalog the multifunctional 5GHz wireless CPEs 802.11 A/N for outdoor AirMax5N and AirMax5N ES, which incorporate features that facilitate the work of integrators.

AirLive, a division of the company OvisLink, has announced AirMax 5N, its new generation of multifunctional 5GHz wireless CPEs 802.11 A/N for outdoor use. In addition to this model, AirLive has also designed AirMax 5N-ESD, which includes a protector against electrostatic discharges (ESD) of 8KV. This new solution for outdoor wireless connectivity includes various features and high performance. It covers the spectrum of 5,1 a 5,8 GHz, permite implementar redes wireless económicas y confiables, y posee una carcasa diseñada con materiales resistentes a los rayos ultravioleta con protección a exposiciones prolongadas al sol y a la lluvia.

Entre sus principales características destacan su antena integrada de 16dBi 5GHz -que ofrece polarización horizontal, vertical o variable-, un PCBA interno que facilita su mantenimiento y Power over Ethernet pasivo incorporado. Con la antena direccional integrada y su radio 11n de 150 Mbps de alto rendimiento, AirMax5N/AirMax5N-ESD pueden alcanzar largas distancias.

AirMax5N/AirMax5N-ESD también están equipados con conector R-SMA. Al conectar una antena de alta ganancia a este puerto, los integradores pueden configurar el CPE de manera vertical, horizontal o externa desde la interfaz web.

Various wireless applications

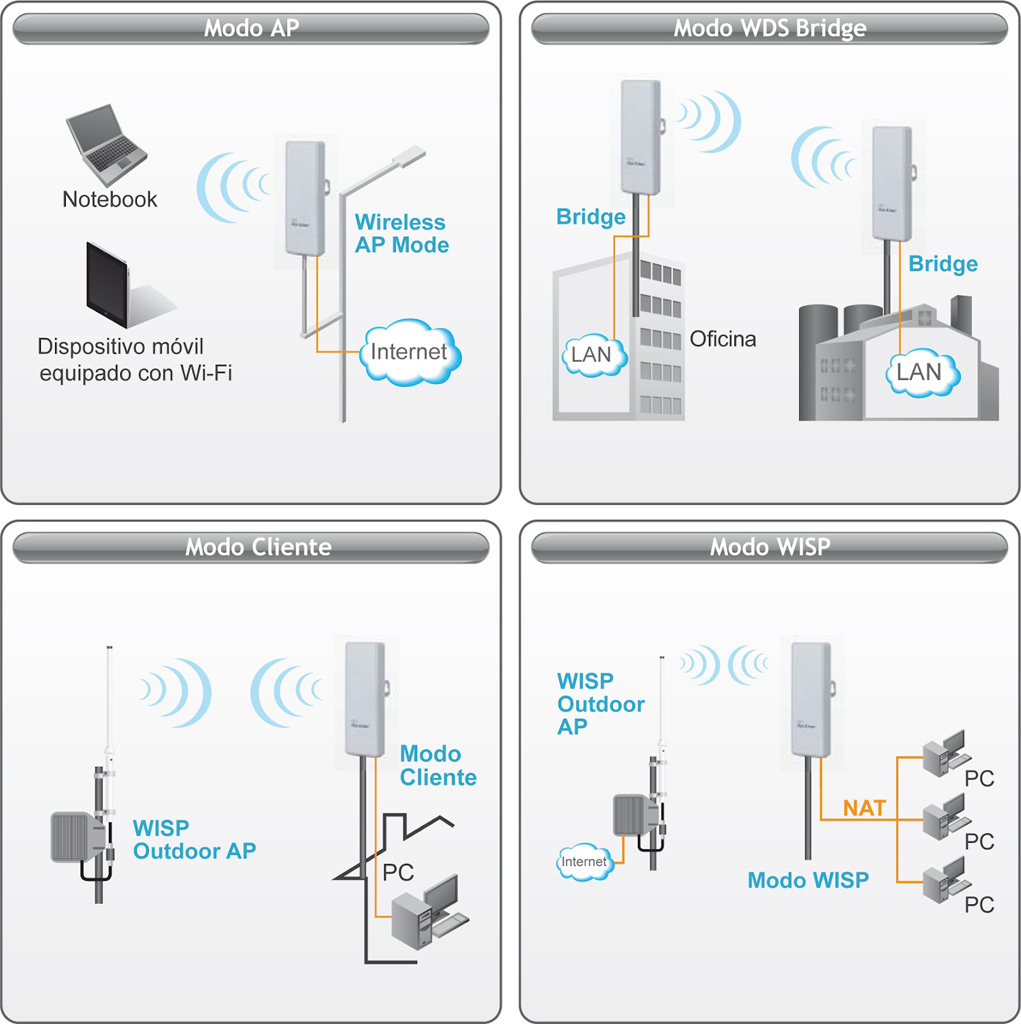

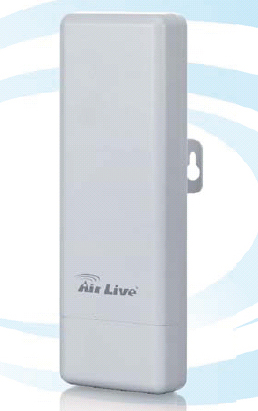

Despite its small size (220 mm long x 80 mm wide x 35 mm high), AirMax5N/AirMax5N-ESD offer high hardware and software performance. The long-range radio reaches greater distance and better signal. So, AirMax5N/AirMax5N-ESD function as an AP, Client, WDS, WDS Repeater, Gateway or WISP. Therefore, the user can adapt the CPE to different wireless applications.

For your part, through the AirLogic interface, the Web configuration is much more user-friendly. with her, the user can select a wireless mode and the AirMax5N/AirMax5N-ESD will display the available options in that mode. They also offer the ability to control connection or bandwidth per user. For example, los operadores WISPs pueden implementar diferentes clases de velocidades de conexión para diferentes planes de abonados.
