AirLive's fiber switch-based solution offers complete urban surveillance coverage

Both the Plus version of the AirLive SNMP-24MGB fiber optic switch and the IG-642POE industrial outdoor equipment have been designed to be integrated into high-performance networks and surveillance and security control projects. Equipment ideal for providing maximum coverage in metropolitan areas.

Airlive has developed a solution to optimize urban surveillance, comprising the fiber network switches SNMP-24MGB Plus and IG-642POE. With this pack it is possible to achieve complete coverage in a given metropolitan area with a high level of detail and capture all movements.

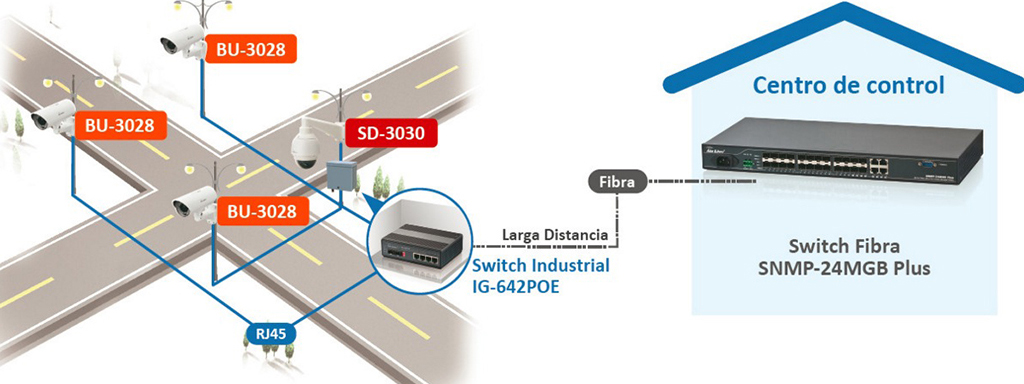

Se puede instalar el switch para fibra AirLive SNMP-24MGB Plus en el centro de control y conectarlo con el equipo industrial para exteriores IG-642POE ubicado, For example, en la intersección de dos calles o avenidas. Con esta configuración se puede conseguir el mayor nivel de detalle y movimientos realizados en el espacio que se monitoriza.

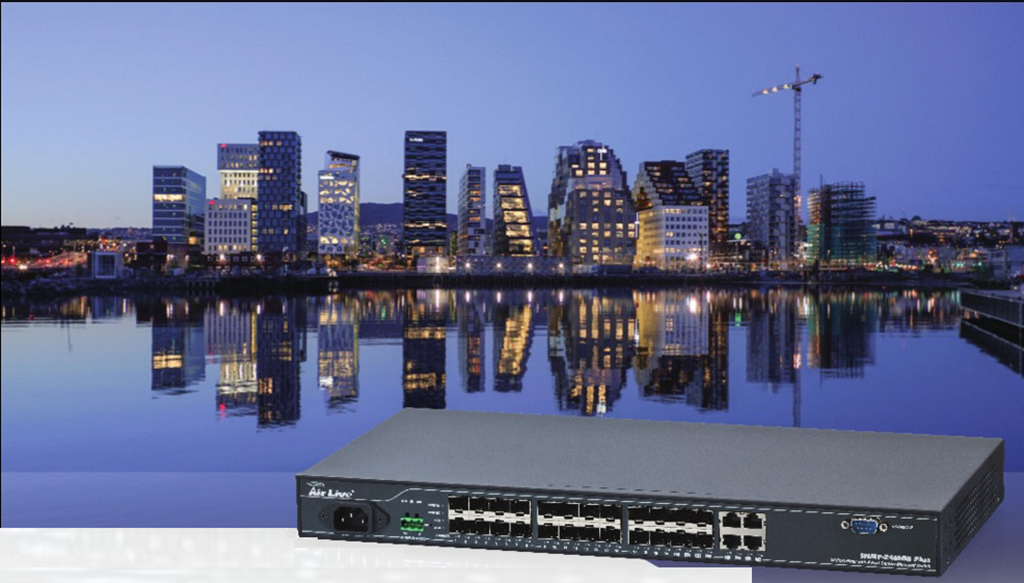

La versión Plus del switch SNMP-24MGB de AirLive para fibra óptica ha sido diseñada para redes de alto rendimiento y proyectos de integración de redes de datos y videovigilancia. Ofrece una conectividad segura y simplifica aspectos críticos como son los entornos urbanos.

Se trata de un equipo idóneo tanto para aplicaciones de oficina como LANs metropolitanas que puede administrarse desde el puerto serie RS-232, through a direct connection, or from an Ethernet port, using CLI or web management associated with SNMP.

It features functions such as QoS, Spanning Tree, VLAN, Port Trunking, bandwidth control and port security, in addition to supporting two power sources, 100 ~ 240VAC and -48VDC for redundancy applications. Redundant power input is important, since it operates as the central switch for all Internet access.

For mission-critical environments, this switch can be configured with redundant backup, which ensures packet transmission and reception.

PoE Switch with 6 Gigabit Ethernet ports

The IG-642POE is an industrial PoE switch with 6 Gigabit Ethernet ports and two SFPs, which provides the same speed as if it were a cabling structure, but without blockages and with great flexibility to extend Gigabit Ethernet in adverse environments.

Provides 4 copper Gigabit RJ-45 ports and 2 100/1000Base-X SFP fiber optic interfaces, delivered in a strong and durable IP31 enclosure with a redundant power system. A suitable device for surveillance system applications, security control and wireless services in environments such as factories or public transportation.

Another important feature is its dual power input with redundancy. Supports two DC power inputs, providing redundant power. When one of the DC power inputs fails, the relay is activated and notifies the user of the power loss.
