In order to cover both the interior and the entire perimeter zone, a wireless network based on AirLive solutions has been installed to manage the 16 video surveillance cameras that are installed. High definition equipment and optimal performance to cover each and every one of the specific needs and requirements of the different sectors of the complex.

Airlive video surveillance Cegasa

Cegasa is a company dedicated to smelting and production for large-scale aluminium exports, whose headquarters are located in Morón (Carabobo State - Venezuela). It is an industrial complex, the dimensions of which reach 30 Hectares, composed of a central building, where management and administrative areas are located, five areas of production and services, with power plants, tool and material warehouses, and work vehicle depots.

Airlive video surveillance CegasaThis building required a video surveillance system that was completely wireless, due in part to the long distances to be covered and also to the implicit security offered by such solutions. The solution was to envisage an active perimeter control system, throughout the complex, including alarm activation, recordings and notifications via email, in the event of unauthorized intrusion events.

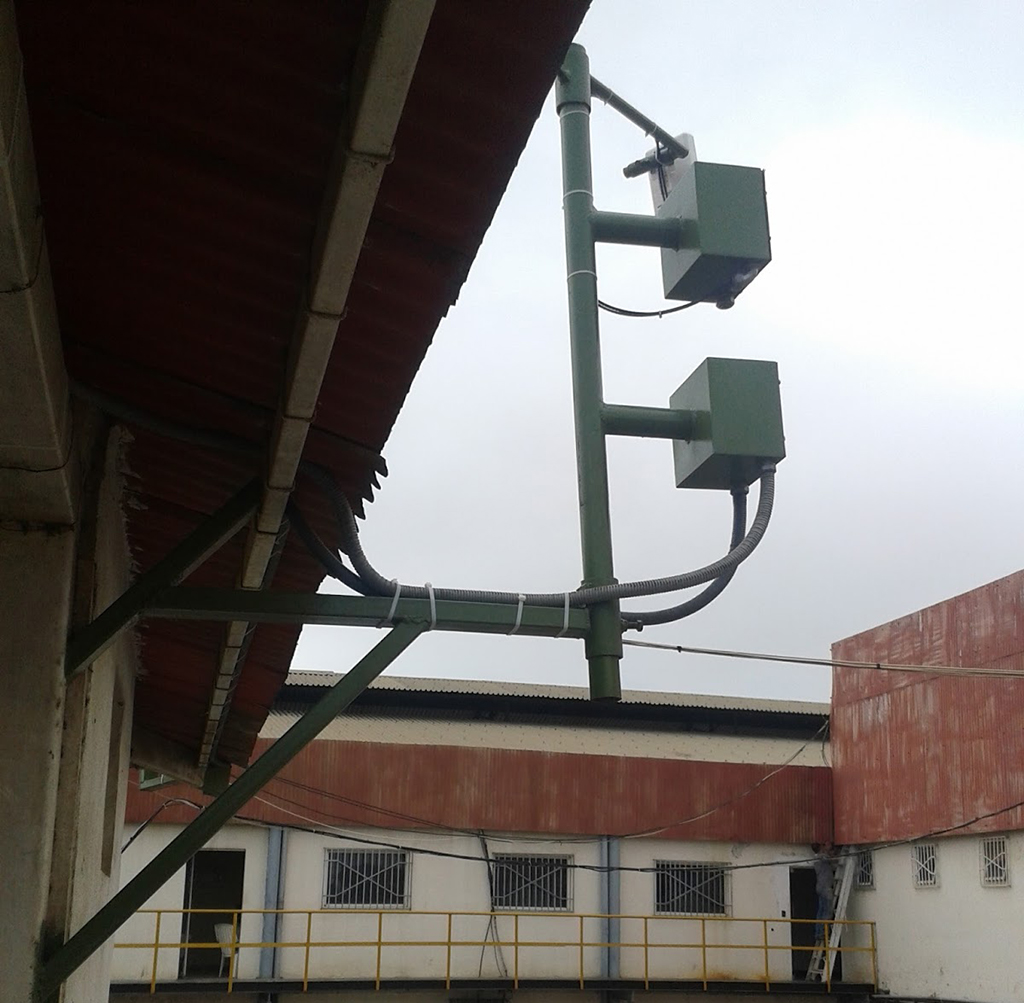

The project integrator company for access control and video security Cycs Engineering and Facilities, was responsible for implementing this IP video surveillance project based on the technology of AirLive. Among the solutions that have been implemented are outdoor CPE and radio wireless connectivity bases, switches, FIXED and motorized NVRs and IP cameras.

Execution of the IP project

Airlive video surveillance CegasaThe conceptual engineering and analysis phase generated the design and configuration of a wireless network based on AirLive solutions, as the POE-GSH2004L-370 backbone switch, that with their 24 PoE ports and 370 watts streamlined network deployment. For its part, the installation of AirMax5X radios allowed to create a wireless transmission platform, totally IP, and with high processing capacity and growth.

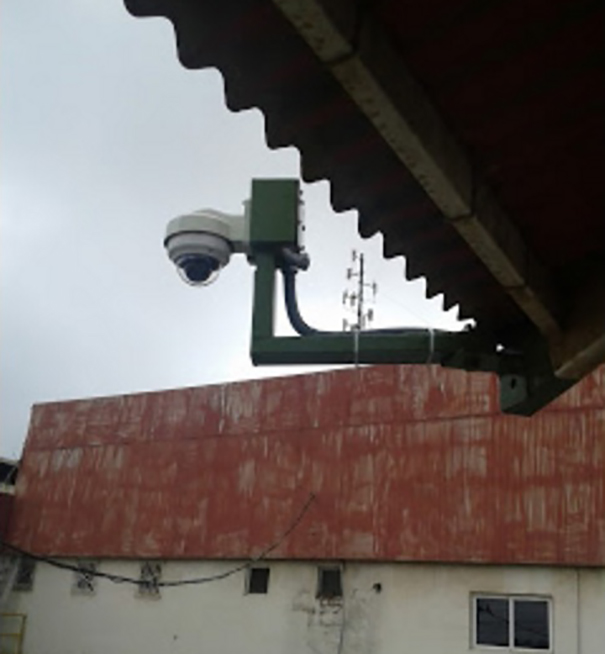

In this way, in the Cegasa industrial complex have been installed 16 Airlive video surveillance cameras: 9 models of 3 MP BU-3028-IVS, six of 2 Mp (three SD-2020s, two OD-2060HD and one OD-2050HD) and one of 5 Mp and fisheye system (FE-501OD).

These high-definition equipment and optimal services have enabled each and every one of the specific needs and requirements of the different sectors of the complex to be met.

Airlive video surveillance CegasaThe main objective of the system is to monitor internal and external areas of the industrial complex, such as the reception areas of the administrative building, the perimeter environment as inputs and exits of people and vehicles from the complex, the surveillance garita, the warehouse, the inner courtyard and parking, the main courtyard and the Roman weight area, the power plant and all the surrounding and outer areas of the industrial complex.

A control center was set up to monitor all this infrastructure, which is located in the data center within the administrative building, from where the entire safety net is centrally managed.

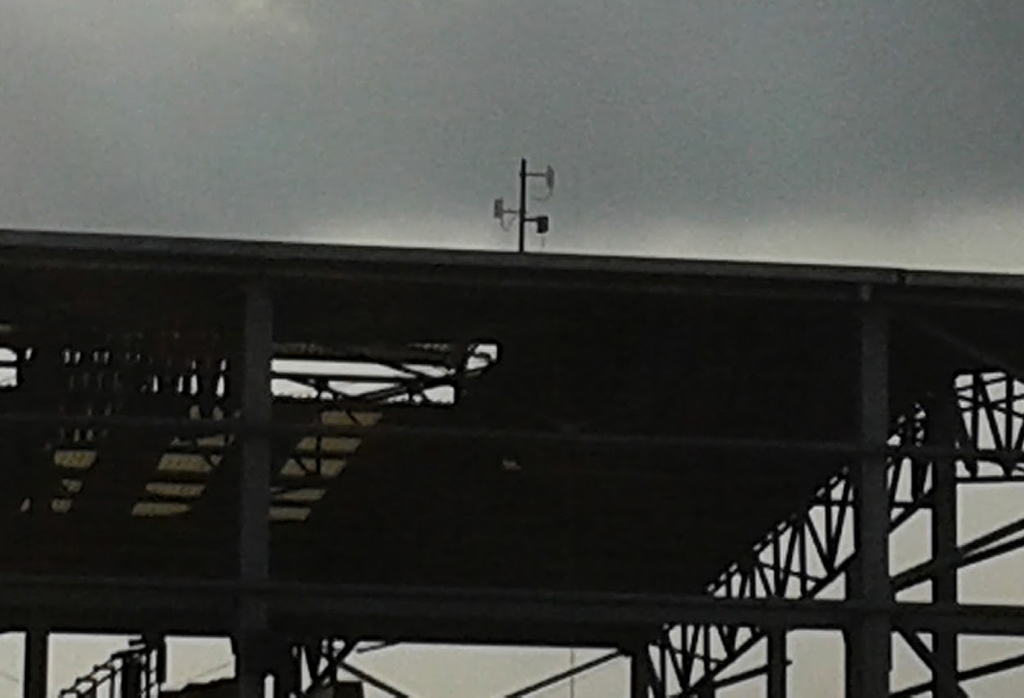

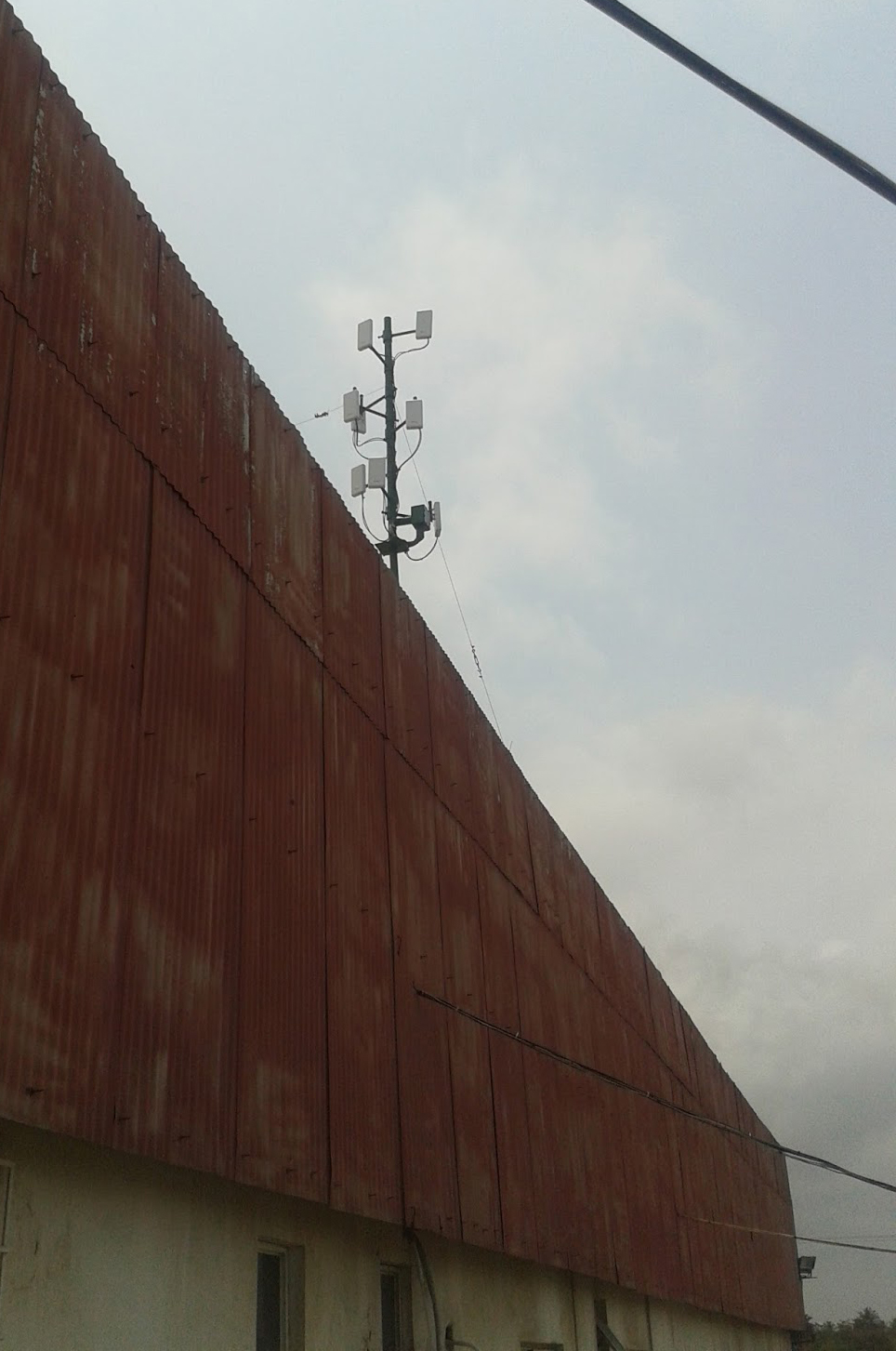

In this same building has also been installed a base radio station that is composed of access points (Ap), microwave radios, responsible for receiving video from all CPEs, transmitter radios images from external and perimeter cameras.


AirLive equipment used:

  • SD-2020
  • OD-2060HD
  • OD-2050HD
  • FE-501OD
  • BU-3028-IVS
  • AirMax5X
  • IG-642POE
  • POE-GSH2400L-370
  • CoreNVR16
