Designed to counteract the drawbacks of rotating radars for perimeter protection and large areas, SpotterRF systems offer a flexible radar detection solution, effective and economical, available in the Spanish market through CCTV Center.

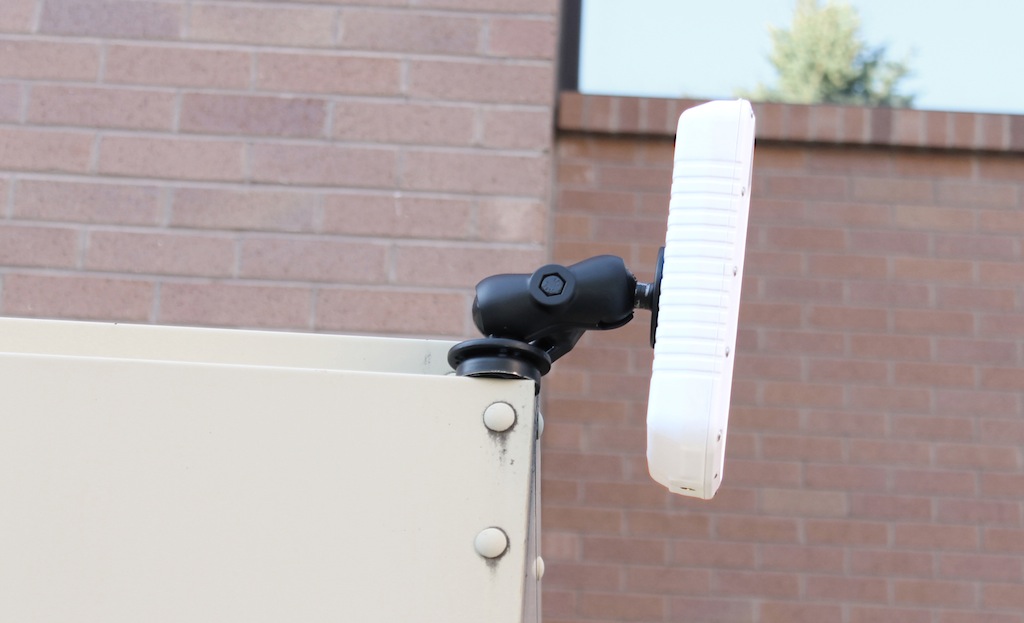

SpotterRF radar CCTV Center

Radars SpotterRF, brand that markets the distributor in Spain CCTV Center, offer a compact format (Just 25 Cm) and light (Between 700 Gr. And 2,3 Kg. depending on the model), making it easy to install on existing poles or infrastructures without the need for civil works.

In this sense, SpotterRF is especially suitable for perimeter protection applications and large areas, with an ability to detect targets the size of a person to more than 950 meters away, day and night, in virtually any weather condition.

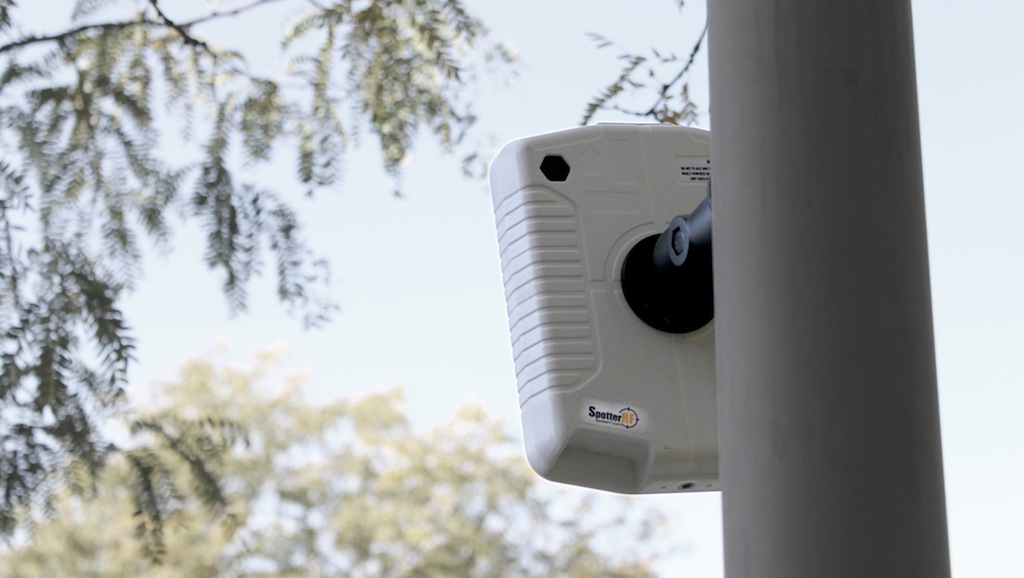

SpotterRF radar CCTV Center

These solid-state radar features are not only differential with respect to rotating radars, but counteract their drawbacks (much heavier, complexes to set up and sensitive to uneven terrain) and added costs, because SpotterRF adds a simple setup (less than ten minutes through web interface), small size, the ability to integrate with other radars and PTZ cameras of the facility, in addition to being able to be installed at high altitudes to better take advantage of the field of view and avoid obstacles and blind angles.

SpotterRF is also waterproof (even to pressure water), has IP67 protection and can operate in temperature ranges from -30o to +65o. In addition, because it does not have moving parts subject to wear and tear, requires no maintenance.

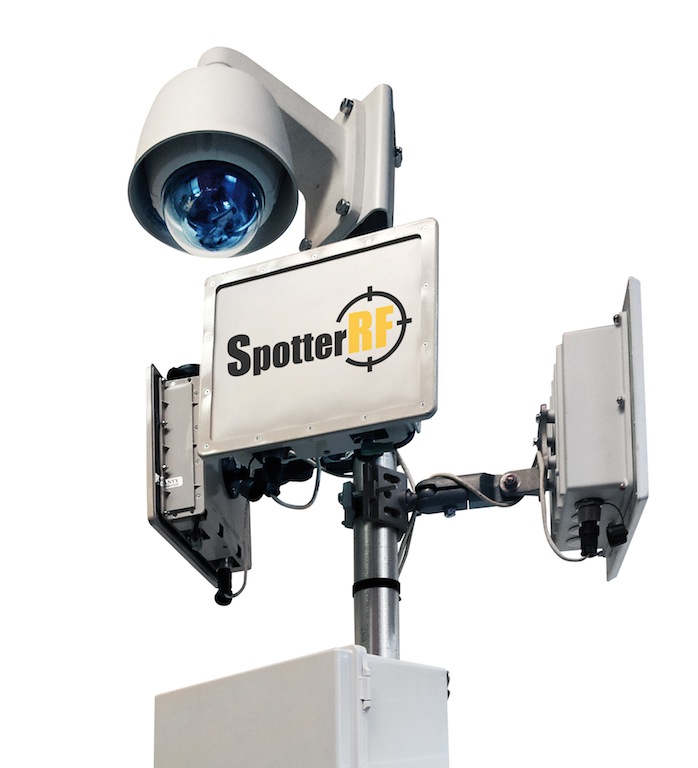

SpotterRF radar CCTV Center

Coverage area and detection distance

SpotterRF solid-state radars generate an elliptical coverage area, with an opening angle of 90o, so it's very easy to combine multiple units to effectively cover large areas and perimeters.

An SP-C40 radar sensor can detect and track a moving target the size of a person at any point in the detection zone at 350 meters away in real time, both day and night, and in adverse weather conditions (Rain, fog and snow).

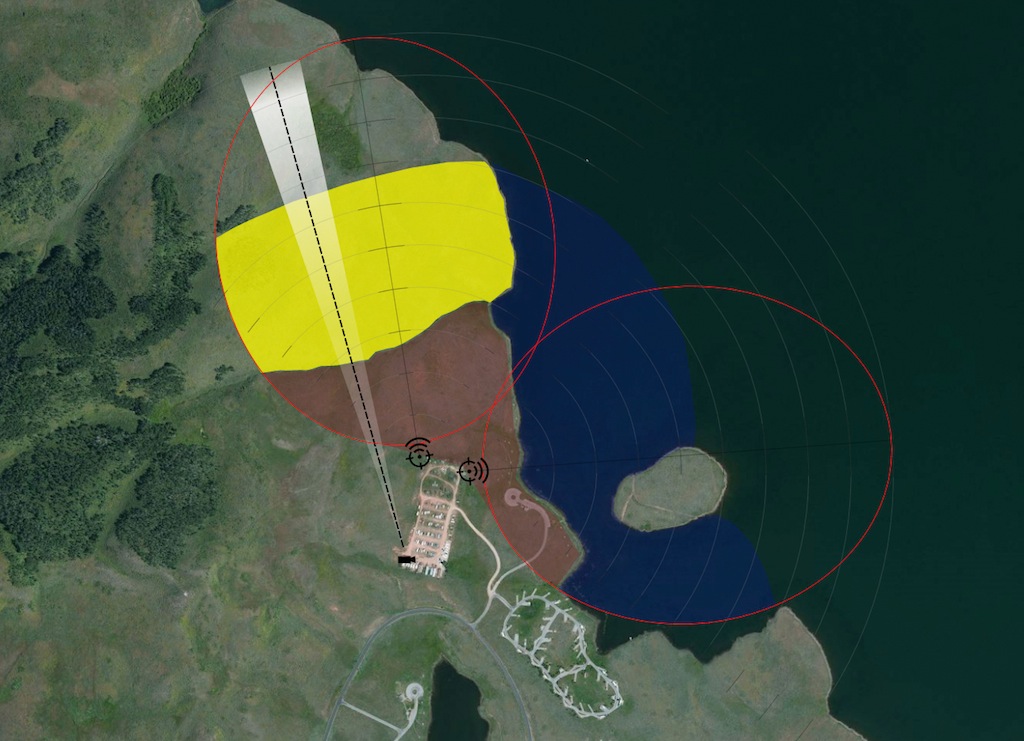

Spotter RF interface NIO CCTV Center

The SP-C550 can detect a target the size of a person at a distance of 850 meters and the size of a car to 1.500 Meters, while with SP-C550-EXT the detection distance for people is extended to 950 Meters.

For its part, the SP-C950 radar (under approval proceedings currently) is able to detect a target the size of a person at a distance of 1.250 Meters.

[Youtube]http://youtu.be/0kMxzjyxX-o[/Youtube]
