The Flir A310 ex thermal imaging camera, distributing CCTV Center, is ideal for infrastructure surveillance applications as well as fire prevention and heat source detection.

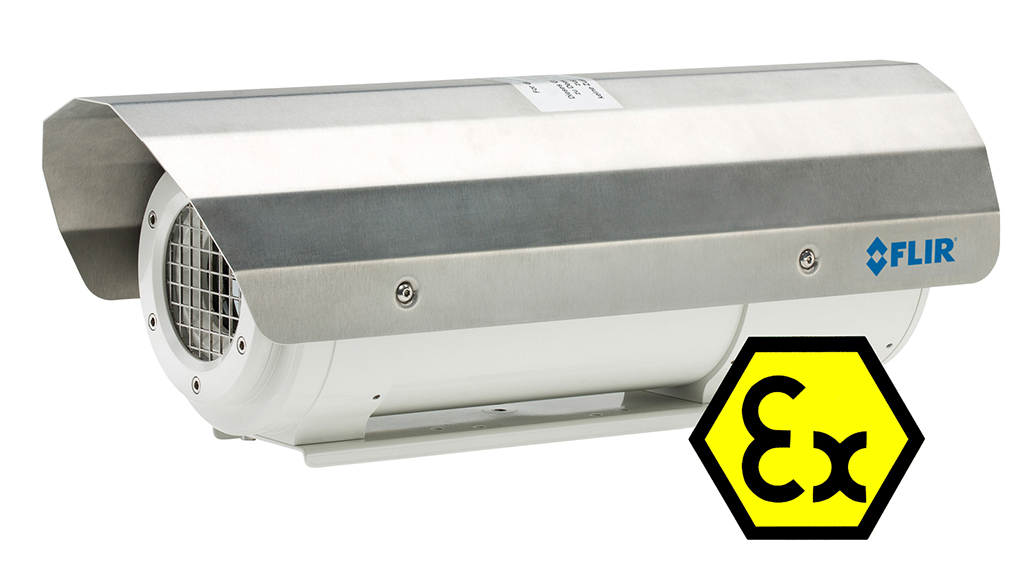

Atex FLIR A310

CCTV Center has incorporated into its offer of safety solutions the thermal camera Flir A310 ex, equipment with temperature measurement functions (Thermography) ATEX certification, designed to work in potentially explosive atmospheres.

The Flir A310 ex thermal camera is ideal for both infrastructure monitoring and protection solutions such as fire prevention and detection of abnormal heat sources or power leaks in industrial plants, Factories, Stores, landfills or electrical substations.

Installations in explosive atmospheres must be protected from ignition sources so it is necessary to select specific equipment and protection systems that meet the requirements of ATEX regulations or similar legislation to avoid the risk of fire or explosion.

Atex FLIR A310The Flir A310 ex camera enables thermal monitoring and early fire detection in explosive atmospheres complying with ATEX regulations for areas 1, 2, 21 And 22. In addition, incorporates temperature measurement thermal functions at one point, in an area and detection of temperature differences. It also includes alarm notification functions to alert operators when an abnormal situation is detected.

The camera can automatically send the results of the analysis and IR images by scheduled e-mail or when an alarm occurs.

Based on a Flir A310 thermal camera and mounted on a flammable carwr, the A310 ex allows you to monitor facilities and detect risky situations before they become serious problems with high economic costs. Process monitoring, Machinery, quality control and early fire detection at potentially explosive sites are typical applications for the Flir A310 ex.

Features:

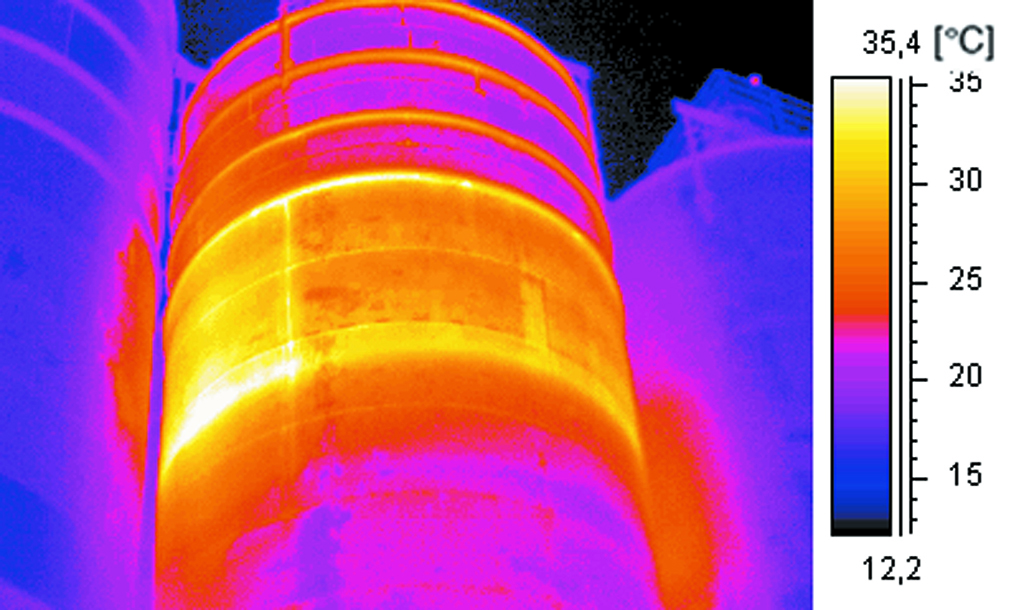

Atex thermography

  • Flammable housing
  • 25th or 45th optics
  • Temperature measurement functions
  • Alarm notification
  • Integrated heater
  • Suitable for outdoor use
  • IP67 protection
  • ATEX zone certification 1, 2, 21 And 22.
  • Power 24 Vdc
