Innovative Axis Camera Families for Autodesk Revit provides 3D camera models to illustrate what the installed camera will look like in the real world and what areas of the surveillance system it will cover once it is up and running.

Axis Camera Families for Autodesk Revit

Axis Communications launches a powerful addition to its offer of tools for security system designers. Camera models in Axis Camera Families include detailed accurate metadata for modeling building information (BIM). 3D models will also allow security system designers to interactively visualize the range of cameras to help them choose the most appropriate camera model and optimize system settings..

Peter Friberg, Director of Systems and Services at Axis Communications, stressed that “safety should be an integral part of the design process of any large building. To achieve the best level of security and avoid blind spots that could potentially become a security issue, safety systems should be planned at the same time as other essential services such as electricity or pipes and sanitary installations”.

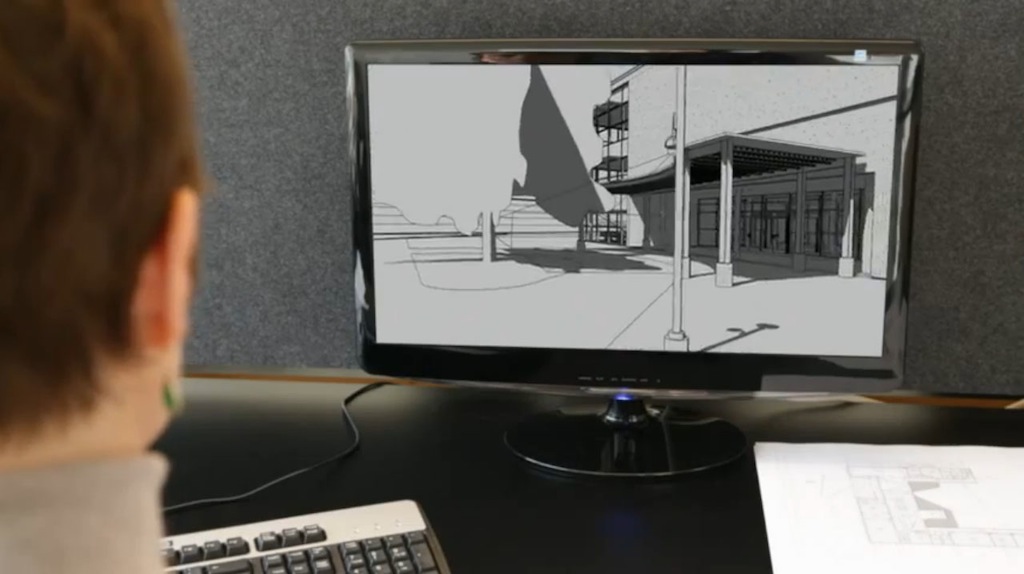

With the new 3D models in Axis Camera Families, security system designers can place Axis network cameras directly on CAD building plans and visualize the areas that the cameras will cover. The software allows them to see exactly how the cameras will fit the layout of the building and easily detect if visions are obstructed by columns or walls., to reduce unins foreseen blind spots.

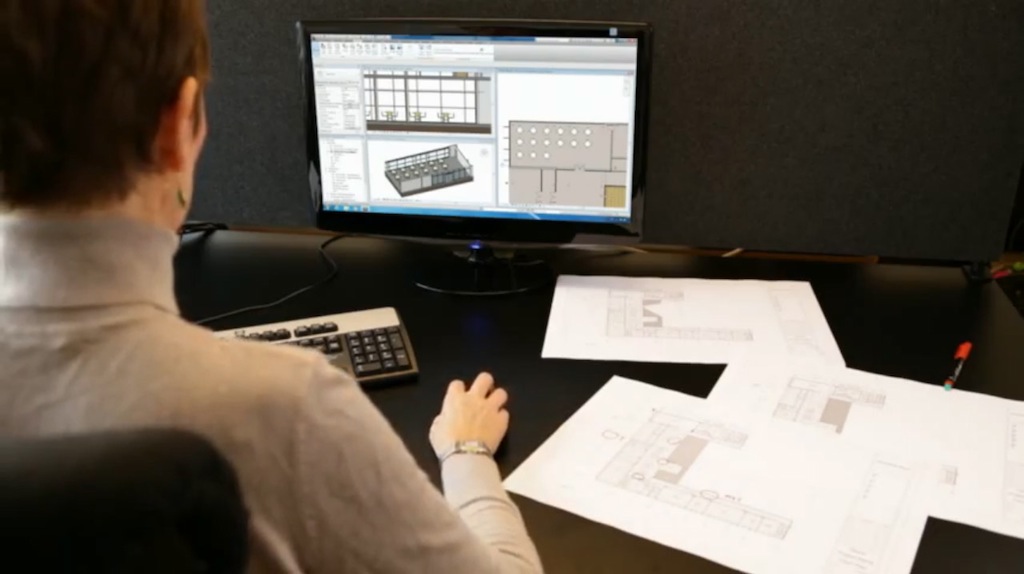

This means that the planning of security systems can now be completed as an integrated part of the building design., integrating into the same flow of the tool that is used for the design of the rest of the building. CAD system users can also access information about each camera, from model number to mounting accessories, power consumption and resolution.

Axis Camera Families for Autodesk Revit

Real 3D modeling

Todd Kotlaba, Systems Project Manager and Partner at TLC Engineering for Architecture, has been one of the first users of Axis Camera Families. “We have used Axis Camera Families in CCTV designs for our clients.

The camera's real 3D model gives us the ability to detect collisions and avoid conflicts with other building systems., such as mechanical installations, electrical and plumbing, avoiding directing conflicts and obstructions to the field of view that the camera will cover. Axis Camera Families is also very useful for customers who, often, they cannot visualize what it will look like when the building is completed. The information also identifies the pixels per square meter for the selected camera, which helps meet customer expectations regarding visible image quality and recording resolution”, highlighted Kotlaba.

Building Information Modeling (BIM) is a concept in which all the components of a building, like walls, the doors, pipes, Etc., are included in a CAD database, giving a complete view of all the details included in the design. This database is subsequently used not only for the planning and construction of the building, but also throughout its life cycle, to plan your maintenance and management.

Axis Camera Families for Autodesk Revit is available for free to Axis partners.
