Pelco multiplies the opportunities for analog cameras

Pelco, compañía de Schneider Electric especializada en el diseño, development and manufacturing of video security systems, has expanded its portfolio of analog cameras with the new C20 range of box cameras, the new BU series of bullet cameras and the new FD family of compact domes.

Schneider Electric has presented the update of its security camera offerings Pelco by Schneider Electric. Thus, users can now choose from a complete selection of fixed mini-domes and bullet cameras with infrared option, as well as a new series of high-resolution box cameras with day/night performance and extended dynamic range, therefore they are indicated for protecting a wide range of both indoor and outdoor spaces.

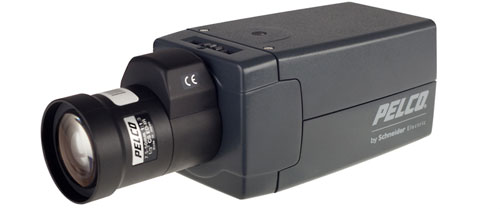

The C10 series has been replaced by the new C20 series, updating its range of box cameras. But the C20 series represents much more than just a simple update. Con 650 TV lines, the new series offers analog cameras with higher resolution, better equipped and more affordable. These new cameras offer high resolution with color models, day/night, and day/night with WDR, all of them with features typically found in more expensive video security systems.

The series includes the C20-CH model, una cámara digital color diseñada para ofrecer una calidad superior de imagen en un amplio rango de condiciones ya que permite conmutar por software a modo blanco y negro en caso de condiciones de baja luminosidad. Incluyen balance de blancos automático para situaciones de difícil iluminación, reducción digital del sonido que minimiza el nivel de ruido del entorno y proporciona una clara calidad de imagen, además de compensación de contraluces que ajusta la imagen para evitar que los objetos queden oscuros ante un contraluz.

For your part, The C20-DN is a day/night digital camera with a mechanical infrared filter that switches between black and white or color modes as ambient light conditions change. So, outstanding performance is achieved in all types of lighting, while in the case of the C20-DW model it is a day/night camera with WDR technology, which provides an extended dynamic range of 120 dB and produces high-quality images in all types of lighting situations, even in those with strong backlighting or glare.

New BU series of bullet cameras

The BU series of bullet cameras is defined by offering the highest analog resolution available in IR capabilities and being built for quick, easy installation and years of reliable performance. As main features of this range we can highlight: infrared illumination (zero lux), vandal-resistant (impact-resistant according to the IK10 standard) and built with video analysis that includes privacy zones and motion detection (in the BU5 and BU6 models). Within the range, the BU4 series is a high-resolution digital camera capable of providing clear images in applications without light with supplementary infrared illumination with a reach of 15 metros.

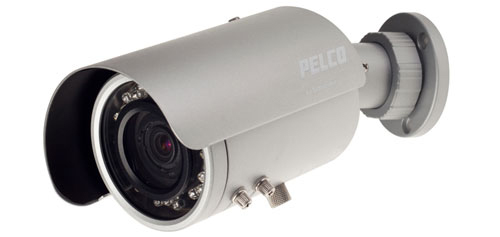

For your part, the BU5 model is a very high-definition digital camera (650 TV lines) capable of providing high-quality images, even at night in areas without lighting thanks to supplementary infrared illumination with a reach of 25 metros. It is a model suitable for outdoor surveillance, offering a minimum of one 0,1 lux de iluminación en modo color y utilizando tecnología día/noche para un alto rendimiento en condiciones de poca luz.

En paralelo, la serie BU6 de cámaras de muy alta resolución (650 TV lines) son capaces de proporcionar imágenes de alta calidad incluso por la noche con iluminación cero con la gama de infrarrojos de iluminación suplementaria de 40 metros. Dispone de la tecnología WDR (rango dinámico extendido), que le permite tener un alto rendimiento en condiciones extremas de luz de fondo y, en caso de poca luz, esta nueva cámara utiliza tecnología digital de obturación lenta para producir 0,03 lux de sensibilidad y dispone de zoom digital.

La compensación de contraluz ajusta la imagen para prevenir el deslumbramiento, while white balance and noise reduction technologies work to maximize image quality and minimize noise levels for any outdoor application, being ideal for applications in harsh environments.

Compact mini-dome

The new FD are compact dome cameras that incorporate multiple functions and high-resolution analog performance. Choose models with infrared illumination to capture sharp images in low-light or no-light conditions. Available in wall or ceiling version, these cameras are ideal for protecting a wide range of indoor areas as well as outdoor environments.

The FD1 series has two camera options and different lens options for a variety of indoor applications. Con 540 TV lines with a fixed or varifocal lens, with day/night and color options, this model also features additional infrared illumination in certain models.

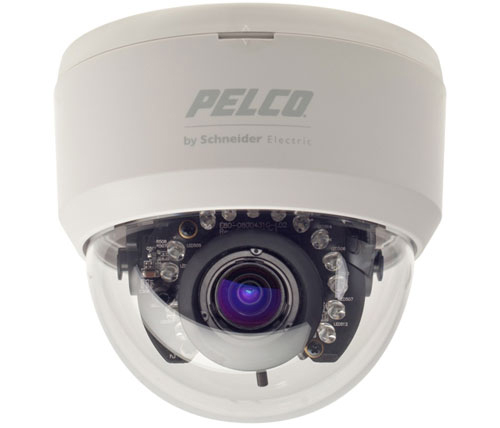

The FD2 is a fixed indoor mini-dome camera whose attractive dimensions, combined with its numerous features, make it ideal for most indoor applications. Among its features, There are also four camera options and a lens positioning system capable of offering a wide variety of paths and tilt angles.

The offer is completed with the FD5 series, que ofrece tres opciones de cámara y diferentes opciones de lentes, además de un diseño a prueba de vandalismo, diseñada para resistir impactos de acuerdo al estándar IK10 y asegurar su funcionamiento en un rango de temperatura entre -30 degrees and 50 degrees.
