Scati instala un sistema CCTV IP en una prestigiosa universidad de Egipto

The solution, that protects the campus perimeter and buildings, se compone de 349 IP cameras and 8 Vision X800 recording platforms to manage images. The infrastructure is monitored from a main control center with three security operator positions, complemented by a video wall with large format monitors.

One of the most prestigious universities in Egypt has trusted in the IP CCTV solution of Scati to ensure the safety of facilities and users, as well as reduce costs related to security personnel.

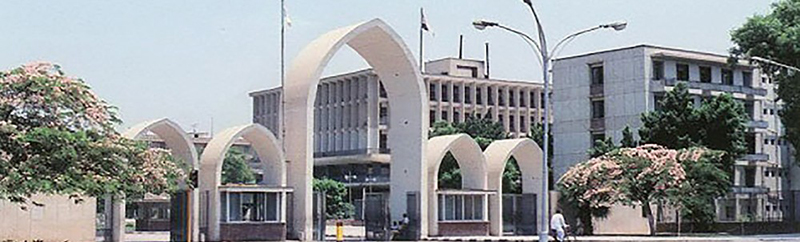

Founded in 1995, The main campus of this institution is located in Qena, city ​​located 600 kilometers from Cairo, and has 18 faculties and an institute. Its Security Department embarked on an ambitious project that posed demanding requirements at a technical and functional level.. Scati has been the company selected to carry it out and execute them in different phases.

IP CCTV system, that protects the campus perimeter and buildings, se compone de 349 IP cameras that offer high image resolution to clarify any event that occurred in the facilities. For this installation a bullet camera has been used. 2 megapíxel, minidome models 1,3 MP and PTZ IP dome 2 MP.

The first is ideal for outdoor installation since it, in addition to having WDR functionalities, works in low light conditions thanks to the IR filters that allow night vision up to 30 metros. The mini domes, due to its compact size and vandal-resistant housing, They are perfect in environments where discretion is an essential requirement; while PTZ IP dome cameras from 2 MP resolution with 20x optical zoom allows you to cover large areas.

The entire Scatei Eye range has embedded intelligent video analysis functionalities, which allows you to have a proactive CCTV system, that automatically alerts security operators upon detection of certain events.

To manage the images of these 349 cameras, eight Scati Vision X800 recording platforms have been required. These devices are versatile high-end video recorders whose processor allows you to manage up to 64 cameras with megapixel resolution and offer a storage capacity of up to 48 TB.

With pre-configured Scati Vision software, The X800 offer a wide variety of possibilities to obtain the maximum performance from the CCTV system.

For professional and intelligent image monitoring, This Egyptian university manages the IP CCTV system through a fiber optic-based communications network, allowing for a flexible and scalable solution architecture.

From a main control center with three security operator positions, complemented by a video wall with large format monitors, The entire IP CCTV system is managed and monitored.

Additionally, each of the protected infrastructures, It has its own control subcenter, that monitors its own cameras, from the corresponding security operator position. This way, double supervision of the IP CCTV system is available, ensuring the protection of people and assets 24 hours of the day.

The various control centers have the management tools of the Scati suite: Watcher, Wall.

The first is a client application for remote management of the CCTV system, designed to form a security operator position with the most advanced functionalities. Con Scati Wall, each operator is capable of monitoring up to 64 simultaneous cameras and also perform other operations such as executing digital zoom on the PTZ cameras (for easy identification of people), and/or manage images related to events and alarms. Its use is also intuitive and simple thanks to the creation of scenarios and image sequences..
