Lilin offers an integrated IP video solution for security projects in educational environments

El fabricante de sistemas de seguridad de vídeo en red Lilin muestra una solución completa e integrada de videovigilancia IP para centros educativos.

Candle ha desarrollado una solución completa e integrada con sus productos de vídeo IP para garantizar la seguridad de las personas y bienes en los centros de enseñanza.

Los sistemas de vídeo para centros educativos exigen, por lo general, vídeo IP de 2 MP y 1.080p 2MP; sistemas de visualización de vídeo remoto desde múltiples emplazamientos; gestión centralizada de alimentación PoE; sencilla instalación de cámaras de videovigilancia y antivandálicas y una visión nocturna nítida, por lo que una solución completa ha de cubrir todos estos elementos.

One of the advantages of implementing the solution is that many educational centers already have an Ethernet network, so that IP video systems can take advantage of this infrastructure for transmitting images from surveillance cameras to a video recorder.

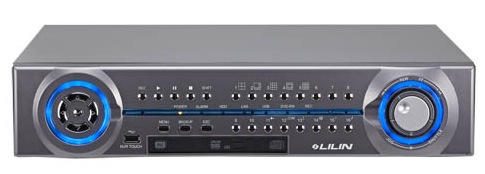

The Lilin NVR Touch system offers integrated recording, with an internal storage capacity of up to 24 TB HDD and 16TB eSATA RAID. This volume allows centers to record IP video at 1080p in real time for sixteen channels for 2,5 meses, or 256 GB of SSD for two days of recording.

Another component of this solution is the centralized power management for the surveillance cameras through the company's PoE switches, with LED indicators on the PoE switch to know its status, which reduces the maintenance cost of the installation by avoiding trips to the center to check its operation in case of a power failure.

Remote viewing

One of the most frequent requirements in security project planning in educational centers is that video viewing can be done remotely. The Lilin solution integrates the VD022 system, which decodes live video remotely from the Touch NVR, allows remote viewing of IP cameras, as well as remote playback and backup.

One of the key elements of this integrated solution for educational centers are the surveillance cameras, whose most common choice is that they are vandal-proof, both inside and outside these facilities.

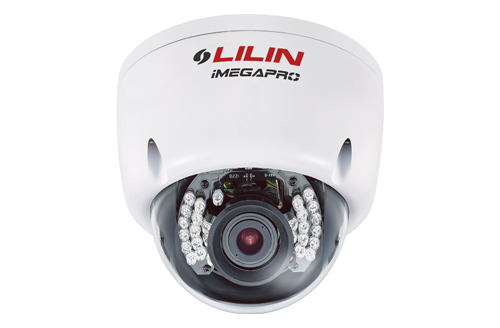

The Lilin solution is the IPR6122ESX camera, with vandal-proof casing, built-in infrared and tamper-proof function, to provide extra protection to the surveillance unit.

Besides, the intelligent video analysis (IVS) of the cameras allows motion and sound detection (model IPD6220), and tamper detection alarms that are notified to the NVR Touch with alarm snapshots for instant playback.

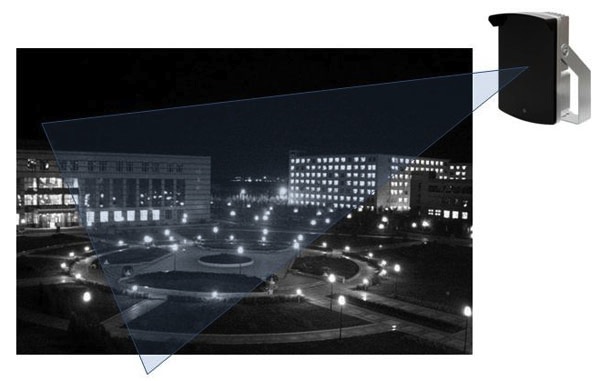

Estas características, along with the integration of infrared in the cameras, helps maintain security in school centers day/night, with clear and high-quality night video images indoors, while outdoors, the Lilin infrared illuminator acts as an additional light source, with a range of up to 250m.

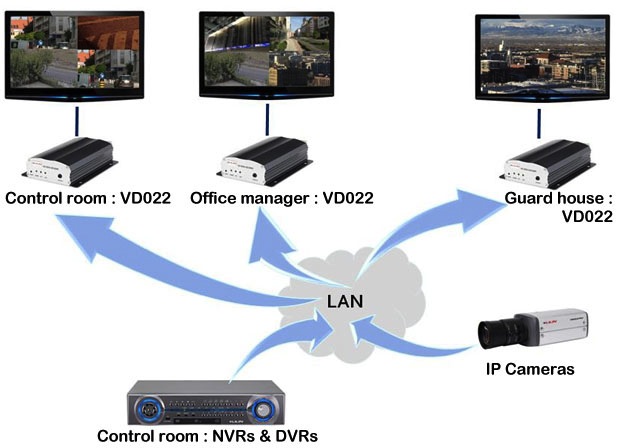

The video systems of this solution configured for educational centers allow storing the NVRs in a centralized rack or using them individually with LCD monitors, since the VD022 decoder can be used for a TV Wall or for remote viewing (see diagram).
