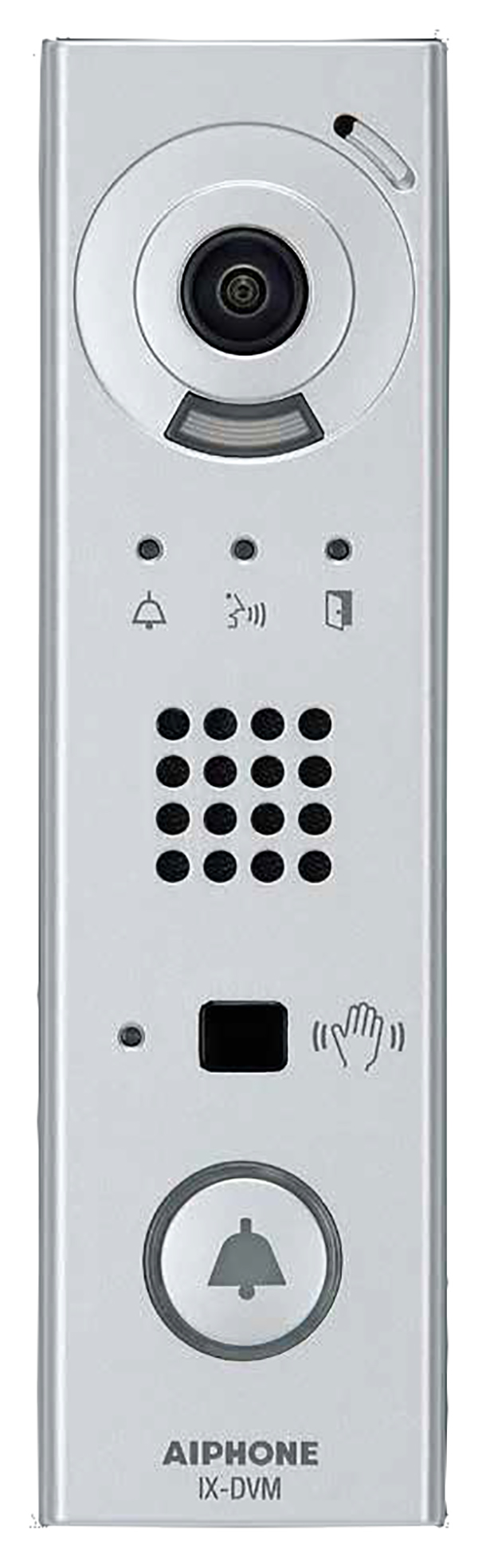

Aiphone IX-DVM: intercomunicador con audio y vídeo por IP

Diseñado con entrada de audio y vídeo, el intercomunicador Aiphone IX-DVM has a proximity sensor for contactless calling. A device prepared for outdoor use with IP54 and IK07 protection rating

The intercom IX-DVM of Aiphone, que distribuye Optimus, features color audio/video and calling with a button or contactlessly via a proximity sensor. Con sólo 48 mm wide can be installed in practically any space, no matter how narrow, such as offices, shops or parking lots.

It is an IP device that connects directly to the data network, powered by PoE and compatible with ONVIF (profile S). In addition to the usual features of door unlocking, night lighting, pictograms and audio messages for full accessibility… it has advanced functions such as wide-angle lens distortion correction (with a 170º viewing angle), correction of differences between light and dark to distinguish the visitor or the ability to call without touching the device through a proximity sensor and algorithms that reduce false calls (rain, wind…).

As part of the IX system, it can call 20 control stations simultaneously or receive a general call, entre otras prestaciones.

It is an outdoor-ready device with IP54 protection rating, and with IK07 anti-vandalism protection thanks to its robust construction and aluminum cast housing.

Este sistema de control de accesos audio/vídeo, con placas de llamada y centrales de control, uses the ONVIF protocol and communications are entirely IP-based. Allows long-distance management of remote sites via LAN and VPN, without the need for a server and with reduced installation costs.

Las placas de entrada están disponibles en varios formatos para cubrir cualquier necesidad, con paneles de acero inoxidable anti vandalismo e intemperie, pulsadores de llamada retro iluminados, pictogramas de estado de la comunicación con voz sintetizada, conexión RJ45 y alimentación PoE. Están disponibles con audio y con audio/vídeo color e iluminación para visión nocturna.

Las centrales de control permiten la comunicación manos libres o con auricular, y además de las funciones normales de un teléfono IP pueden emitir mensajes en directo o pregrabados…
