The Mobotix Q24M-Sec camera incorporates the MxAnalytics video analysis tool

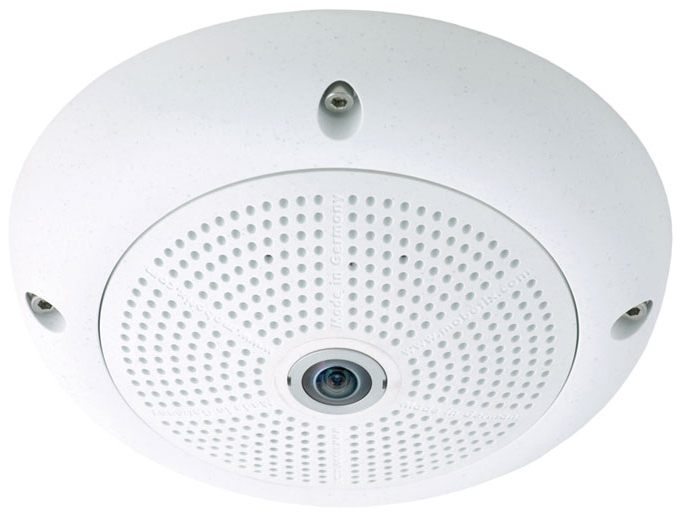

With its combination of high-resolution sensor, hemispheric optics and internal DVR, the Mobotix AG Q24M-Sec hemispheric camera allows monitoring an entire space with a single camera and storing the images as high-definition video in it, and now can also count people and objects, measure, and analyze video images thanks to the MxAnalytics feature.

The hemispheric camera Mobotix Q24M-Sec, which can capture an entire room without blind spots, now has even more to offer with the new integrated MxAnalytics video analysis tool. MxAnalytics es una herramienta eficaz para la optimización del proceso o para propósitos de marketing y se puede utilizar en pequeñas tiendas retail, así como en edificios públicos como museos o aeropuertos con el fin de recibir información importante.

Mapa de calor: seguir y evaluar los movimientos

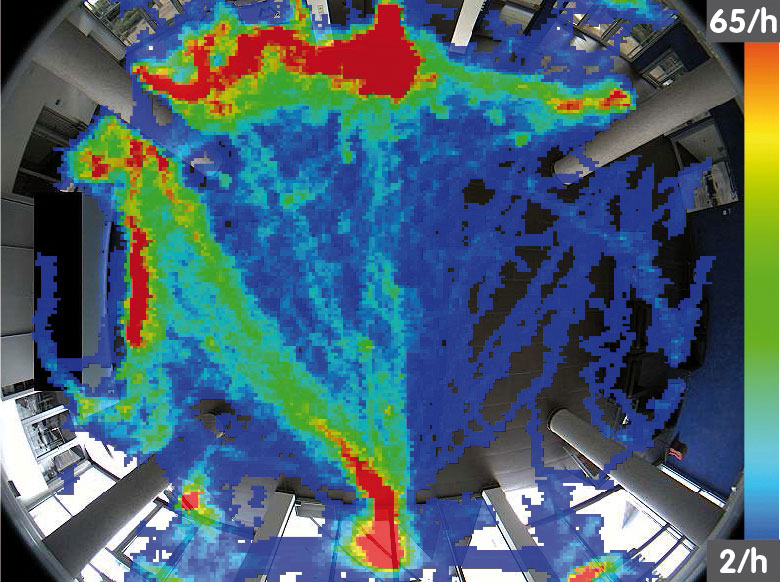

¿Qué estantes de la tienda están atrayendo a más clientes? ¿Qué productos en el stand de exhibición llaman más la atención de los consumidores? ¿Qué áreas de espera en la sala de embarque son las preferidas los lunes entre las 8 AM y las 12 PM? MxAnalytics permite capturar y evaluar de forma fiable el movimiento de personas u objetos en la imagen en vivo. The most frequented areas are highlighted in color on a heat map in a predefined area. Areas with higher movement are shown in red, and those with little movement in blue.

Counting people and objects

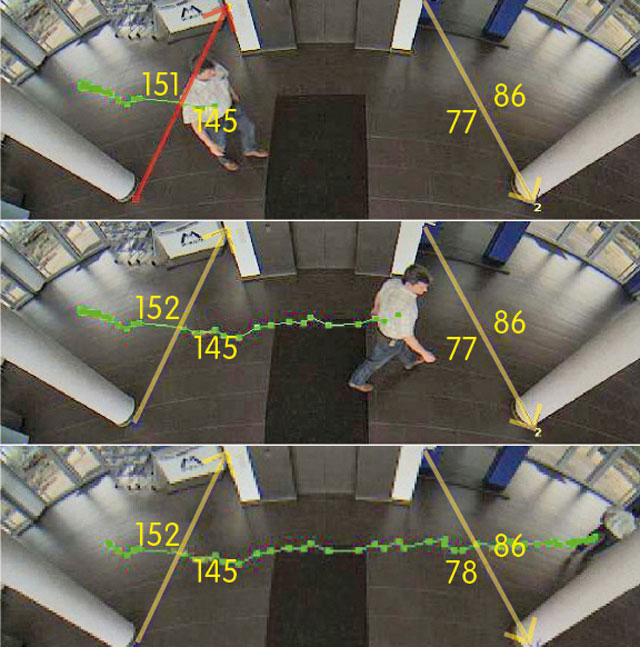

The use of counting lines to count people and objects and generate observation data is a valuable tool. How many people pass through a specific entrance in an hour or in a day? And in which direction are they going?

MxAnalytics also stands out in terms of ease of use thanks to the quick and user-friendly setup when creating reports, For example.
Another point to highlight: The results of the video movement analysis can be saved as daily reports, weekly or monthly on a table and export them through different interfaces. Whether through web interface, email or as an MxControlCenter message, the reports are automatically collected in the camera and can be easily accessed or sent at any time. This can be done completely automatically and individually for any number of recipients.

Cost reduction

In addition to the counting function, the analysis of statistical behavior data makes an essential contribution to process optimization, further reducing costs.

Las cámaras Mobotix Q24M se diferencian de la mayoría de los sistemas de video tradicionales gracias a su arquitectura de sistema descentralizada. Cada cámara incluye una computadora de alta velocidad con memoria a largo plazo. Ya no es necesario el uso de un ordenador o servidor para registrar o analizar el material de imagen. El análisis de video se realiza descentralizado en la cámara, sin carga de red. Esto reduce los costes totales y mantiene un alto rendimiento del sistema. MxAnalytics está disponible de forma gratuita con la última versión del firmware 4.1.4.11 y se puede integrar fácilmente en todos los modelos Q24M-Sec más antiguos a través de una actualización de software.

The new version (2.5.2) The free video management software MxControlCenter also supports MxAnalytics. This allows the evaluation of the results of different cameras in a more convenient way. The update allows configuring MxAnalytics on a Q24M camera and the subsequent analysis of the created and stored data.

Mobotix continues developing MxAnalytics for the image data processing inside the camera initially for the Q24. The robust Mobotix camera requires very little maintenance and can be discreetly integrated into any environment thanks to its sleek design and compact size. The next step will be integration into other Mobotix camera models.
