This manufacturer's innovative parking solution integrates ANPR, video analysis and machine vision, that allow automatic driving, vehicle guidance, its location and comprehensive surveillance, improving the user experience.

Dahua smart parking

The manufacturer of video surveillance products Dahua Technology has developed a new parking management system that strengthens safety and improves the parking experience of drivers, by replacing manual input control with ANPR technology, which also provides the parking guide. Available seats are automatically detected and the driver is guided towards them.

Thanks to Dahua's all-in-one PMS8000 server, security is guaranteed by a complete video surveillance system, that keeps records of each vehicle, including tuition data, image and video. The parking platform has a visual interface based on a map of the space, making management and analysis easy for the common user.

Dahua smart parkingIn addition, you can also integrate a third-party payment system into the system, with several possible application scenarios ranging from airports, Ports, industrial parks and department stores up to small businesses, gas stations and residential complexes.

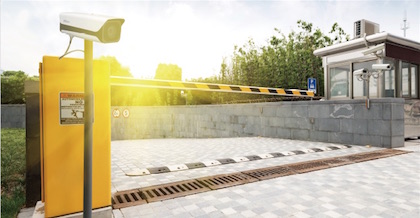

When Smart Entrance mode is enabled, the vehicle approaches and automatically takes a snapshot of the plate, that is entered into a database and also detects the condition of the vehicle (visitor or VIP). A Led display shows the driver the available parking spaces and the barrier opens without human intervention.

Dahua smart parkingAt the input by VDP mode, a simple one-key call to the call center is all it takes to establish a two-way audio conversation with the controller, you can open the barrier remotely.

You can also add the Surveillance System under the vehicle (UVSS) -created by Dahua as a smarter substitute for checking the basses of the car, that uses artificial vision to scan under the chassis to detect potentially dangerous objects, while also recognizing the license plate.

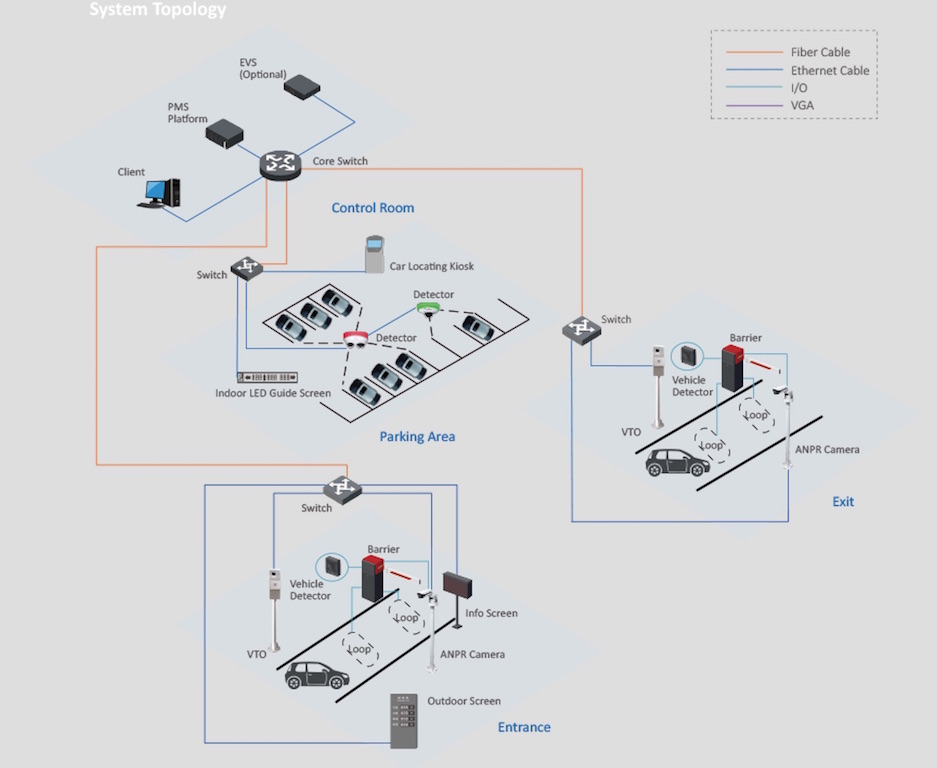

The design of the system is very simple: the management center is connected to the entrance, exit and car parks by a fiber cable, being the ANPR, VTOs, guide screens, barriers and cameras connected by Ethernet cables.Dahua smart parking scheme

Features of the parking management system:

  • Intelligent entry management: instant plate capture, smart recognition and approval.

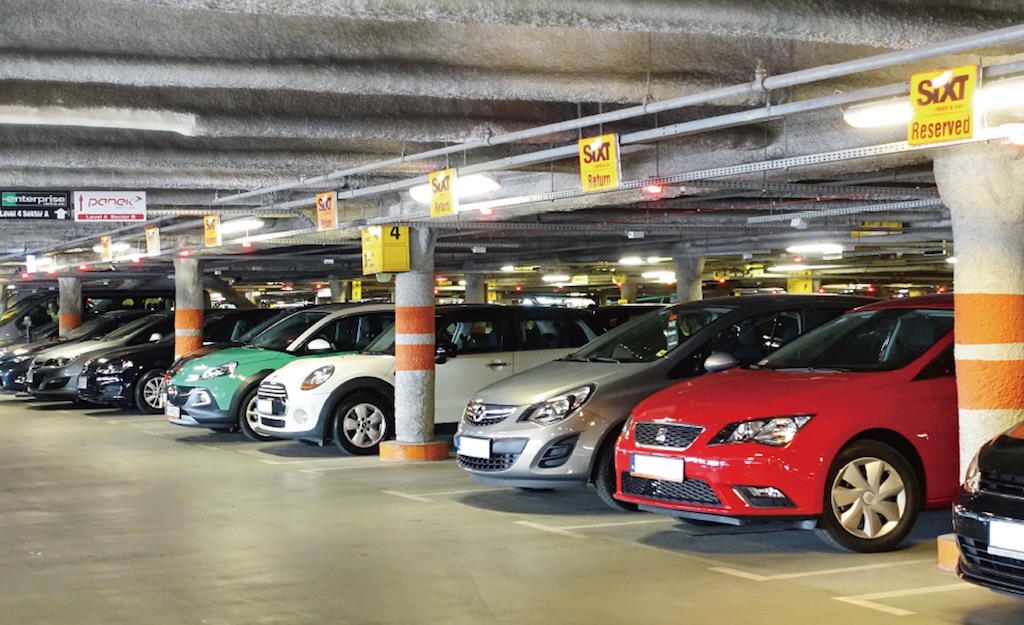

  • Parking guide: a screen shows the number of parking spaces available in each direction and guides the driver to the chosen free space. A square detection camera indicates whether a particular one is free or not. A seven-color hierarchy shows different types of parking spaces available and their status.
  • Anpr: plates are automatically recognized by an IVS server or a free-seat detector.
  • UVSS: machine vision scanning at the bottom of the car, capable of detecting foreign objects and sending a complete scanned image to the operating unit.

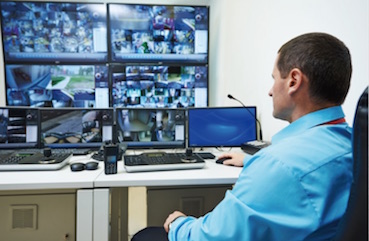

  • Dahua smart parkingCenter management control: all the information is clearly displayed, including images of the vehicle, license plate numbers, check-in and check-out history. The administrator can control the barrier and change the status of the ANPR when an emergency is triggered. A database is also available that makes it easier to search for key information within the records.
  • Comprehensive surveillance: real-time video, previewing and playing pictures.
  • C/S Architecture: supports two hundred users from different PCs, all sharing the same database.
  • User rights: administrators can assign different rights to users as, Live, alarm, playback, e-map, Etc.

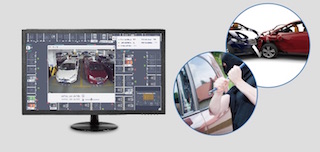

  • E-map guide: an easy-to-understand visual map allows the administrator to search for parking records, monitor free space, detect free points and access license plate information.
