This all-in-one solution has been designed with multiple sensors to provide higher resolution, maximizing the Visual field and reducing the total number of cameras required. With their 4 CMOS 3MP, It is suitable for use in outdoor video surveillance applications providing crystal-clear images.

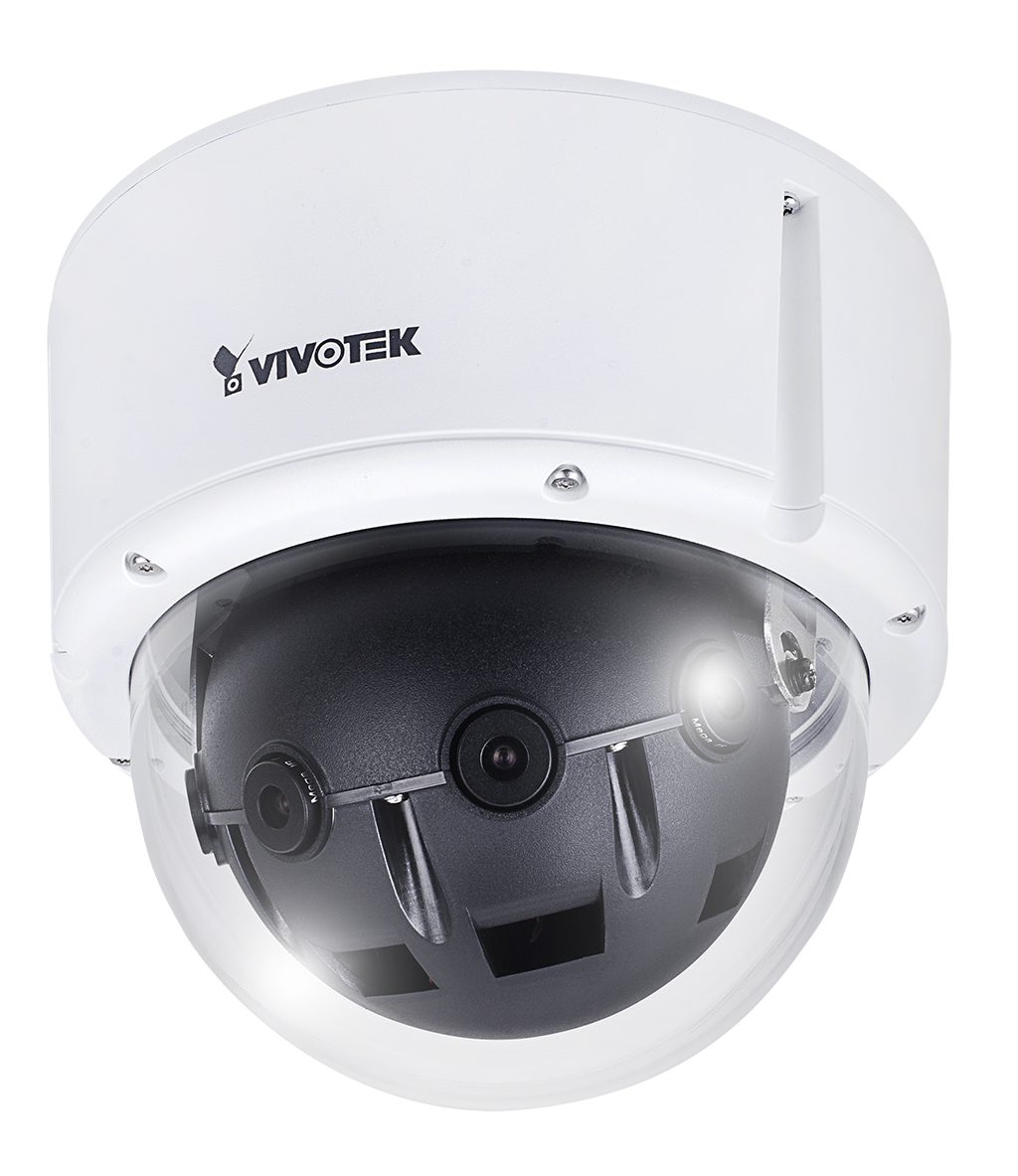

Vivotek MS8392-EV

Vivotek It has added a new camera to its line of solutions of multiple sensors. It is of the dome anti-vandal MS8392-EV, designed on the basis of its predecessor outdoor MS8391-EV.

The MS8392-EV is a solution all-in-one that incorporates four sensor CMOS of 3 megapixel, resulting in a total of 12 MP, offering panoramic views of 180 degrees, redesigned in a new design aesthetic.

Designed for outdoor areas that require a coverage with images in detail, as parking, shopping centers, schools, parks and squares, This equipment allows to maximize the field of vision and reduces the total number of cameras required, thus saving both installation time and maintenance costs.

Specially equipped with built-in video alignment, the MS8392-EV allows users to optimize the image quality of each sensor and panoramic views. It is equipped with an intelligent IR cut filter (IR-cut) and the technology improved WDR to offer protection both of day and as of night and expand the visibility of the image in conditions of lighting of high contrast.

Using the sensors multiple with 12 MP of resolution, ePTZ can be performed by all the panoramic image to provide detailed views; and with 3D noise reduction and intelligent Stream technology, can optimize the quality to them areas press and optimize the efficiency of the use of the width of band.

Built with a robust housing with IP66 and IK10 classification is able to withstand rain and dust, In addition to being protected against actions of vandalism and sabotage when used in applications of video surveillance of foreign.

To eliminate interference caused by direct sunlight, the camera includes a parasol for applications of mounting on wall or in any other location.


  • Resolution: 12 MP.
  • View panoramic of 180 °.
  • Housing with weatherproof IP66 and vandal resistant IK10 classification.
  • 7 FPS to 7.552×1.416.
  • Alignment of video to provide an image without cracks.
  • Intelligent stream to optimize bandwidth efficiency.
  • Range of temperature between -50 ° C ~ 50 ° C for extreme conditions.
  • WDR Technology Enhanced.
  • Zoom 48 by.
