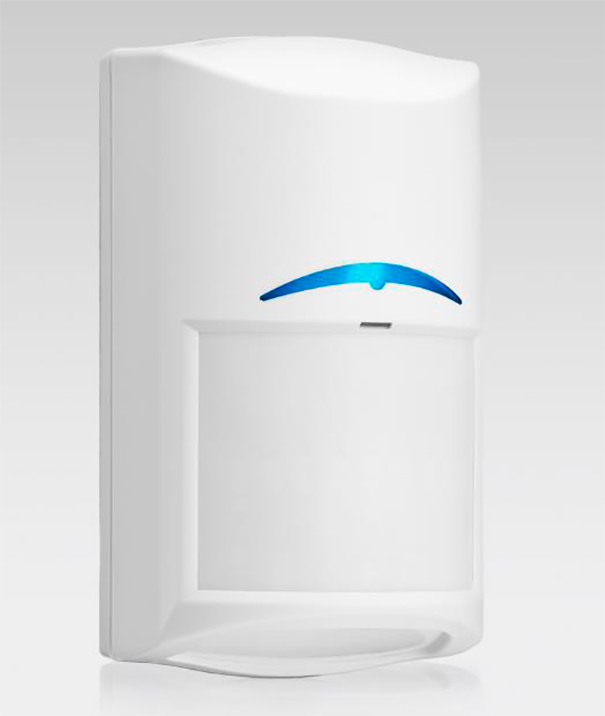

Bosch Commercial Series: motion detectors to identify intruders in businesses

Los detectores de movimiento Commercial Series de Bosch están disponibles en dos modelos, el TriTech, para entornos comerciales, y el TriTech, para aplicaciones de alta seguridad. Unos equipos que detectan intrusos de pared a pared con un rango de cobertura de 15×15 metros.

La familia Commercial Series viene a ampliar la gama de detectores de movimiento de montaje en pared de Bosch Security Systems, que ya incluye la Blue Line Gen2, para domicilios y pequeñas aplicaciones comerciales, y la Serie Profesional, para medianas y grandes aplicaciones comerciales.

Los nuevos detectores de movimiento de Bosch reducen significativamente el tiempo y complejidad de instalación, minimizan las falsas alarmas y ofrecen características que garantizan un rendimiento preciso y fiable.

La línea Commercial Series detecta intrusos de pared a pared, with a coverage range of 15×15 metros. Its technological features include sophisticated First Step Processing (First Step Processing) to provide an immediate response to the first phase of an intrusion.

Dynamic temperature compensation also ensures detection at nearly any temperature, providing optimal performance regardless of room conditions. The active infrared anti-masking detects materials placed in front of or sprayed onto the detector.

For your part, The sensitivity is adjustable with the push of a button to provide the necessary flexibility to adapt to a variety of commercial environments, while reducing the number of models integrators need to keep in stock.

The optical and electronic design of the Commercial Series motion detectors ensures the best possible signal quality, allowing the use of the First Pass Processing algorithm for more accurate alarm determinations compared to traditional motion pulse counting detectors.

In addition, Microwave Noise Adaptive Processing (Microwave Noise Adaptive Processing) adjusts to background incidents, such as a ceiling fan or a hanging sign, to differentiate humans from sources of false alarms. The sealed optical chamber prevents drafts and insects from affecting the detector. These detectors also feature immunity against small animals of up to 4,5 kilograms.

Efficient installation

Its rapid installation improves technician efficiency and minimizes errors, thus ensuring reliable performance. Designed to minimize the need for technical assistance, the new integrated end-of-line resistors simplify wiring requirements while the angled terminal block, with guaranteed opening when unscrewing the connection point, prevents incorrect wiring.

The two-piece self-locking housing with integrated biaxial bubble level ensures quick and easy installation. Besides, the flexible mounting height (Flexible Mounting Height) allows detectors to be placed between 2,3 y 2,75 meters without the need for adjustments.

TriTech and TriTech+

La línea Commercial Series está disponible en dos modelos el TriTech y el TriTech+. El primero, certificado para EN50131-2-4 Grado 2, satisface las necesidades de una amplia gama de aplicaciones comerciales. Utiliza una combinación de infrarrojo pasivo (PIR) y tecnología de detección de radar de microondas Doppler junto con el Procesamiento de Primer Paso.

Para aplicaciones de alta seguridad, el detector de movimiento TriTech+, certificado para EN50131-2-4 Grado 3 con anti-enmascaramiento, cuenta con mayor sensibilidad y anti-enmascaramiento para detectar materiales que se coloquen delante o se pulvericen sobre el detector.

Ambos modelos ofrecen selección de sensibilidad y de visibilidad del Led, así como posibilidad de ajuste del rango del radar Doppler de microondas para reducir las falsas alarmas.
