JVC Superlolux, family of recorders for video surveillance in IP networks with H.264 understanding

Los grabadores Super LoLux de JVC, designed to operate on IP video surveillance networks, share the common element of the H.264 compression engine and their compatibility with Dual Stream.

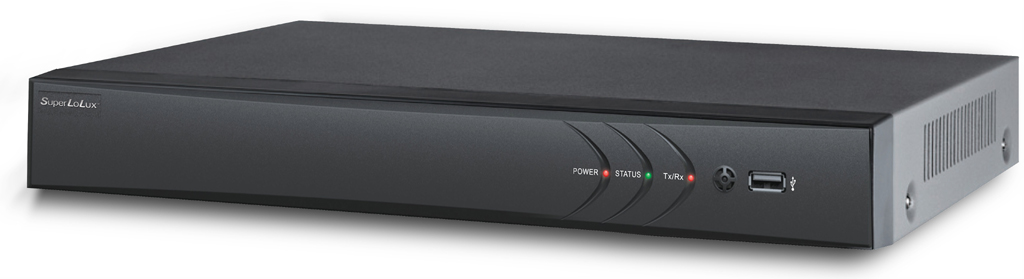

The range of Super LoLux IP recorders for network video surveillance systems from JVC Professional Products Company consists of three models: the VR-D1004-500 four-channel, the VR-D1008-1TB eight-channel and the VR-D1016-1TB 16 canales. The common element of this family is the H.264 video compression engine that combines high image definition, high reliability and maximum video compression efficiency. The common element of this family is the H.264 video compression engine that combines high image definition, high reliability and maximum video compression efficiency.

The Super LoLux recorders for JVC IP networks support Dual Stream mode (2 different codecs) for each of their channels, can be configured independently of resolution parameters, Frame Rate, Bit Rate, image quality and specific settings for normal recording or event recording modes. The main stream supports WD1 resolution (resolution 960H or 960×480, for panoramic format 16:9) in real time while the substream accommodates video signal with CIF resolution (350×240)/QCIF (176×120).

The VR-D1008-1TB and VR-D1016-1TB models include an internal hard drive of 1 TB, while the VR-D1004-500 includes a hard drive of 500 GB. It is possible to add additional external storage capacity with network drives and SATA systems. Video information can be exported using a SATA device or through the USB port located on the front of the recorder.

For local monitoring, la nueva Serie Super LoLux cuenta con conectores HDMI, VGA y en vídeo compuesto con capacidad simultánea, y con salida a resolución Full HD 1920×1080 en los puertos HDMI y VGA. Los grabadores también permiten monitorizar remotamente la reproducción mediante una interfaz web y pueden controlarse con smartphones y tabletas con la App SLLPRO Mobile.La función multivisor alberga hasta 16 cámaras en vivo, con patrones de visualización y secuencias totalmente personalizables por el operador.

También posee un zoom digital de video en los modos de reproducción o visualización en directo y cuenta con modos de búsqueda que se utilizan a través de los propios eventos o insertando etiquetas. Among other features, the privacy mask and compatibility with various communication protocols with PTZ dome cameras stand out, motion detection, anti-intrusion and alarm functions.
