Brickcom launches the new MD-300Np mini dome and a complete range of cameras 5 megapixels

The manufacturer of IP video surveillance equipment, Brickcom, has expanded its catalog of network cameras with a new top night vision mini dome from 3 megapixels and a full line of devices 5 megapixels.

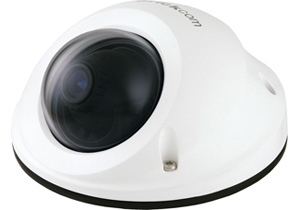

Brickcom Corporation has introduced the new MD-300Np series of top night vision mini dome network cameras from 3 megapixels, which not only has a compact and elegant design, but also offers Full HDTV video (1080p @ 30fps). Incorporates a Sony Exmor TM CMOS sensor that delivers a clear video image for day and night. IP67 certified, IK10 vandal-proof and EN50155 anti-vibration and anti-electric shock, The MD-300Np series is suitable for outdoor surveillance and bus surveillance, trains, subway cars and emergency vehicles.

HDTV Video

The MD-300Np series offers resolution of 3 megapixels and Full HDTV video at 1080p@30fps. The MD-300Np series supports H.264, Motion JPEG and MPEG-4 - in various sequences to meet different quality needs. The MD-300Np series will utilizes a CMOS sensor of 1/2.8″, Delivering reliable video even in low-light applications (0,01 Lux@F1.6, 1/5s, BW; 0,3 Lux F1.6 A, 1/5s, Color). With a sensor 3 megapixels, MD-300Np series provides clear images and high color fidelity.

wide angle, interchangeable lenses and 3G/4G (WiMAX/LTE)

MD-300Np series comes with a wide angle lens, and wide angle adjustment Pan 35°/ Tilt 0-90°/ Rotation 180°, allowing a wide open view for maximum coverage. Unlike other dome cameras, MD-300Np series supports interchangeable lenses for different conditions. Besides, MD-300Np series supports 3G/4G wireless connectivity (WiMAX / LTE) which allows the camera to transmit video data over wireless networks.

Vibration resistant and designed for transport surveillance

The MD-300Np series has a temperature range of -20º C to 50º C and meets EN50155 anti-shock and anti-vibration requirements to provide high reliability and robust performance in mass transportation environments..

Easy installation design

The MD-300Np series is designed for easy installation. With BNC TV-Out connector, The camera can be connected to a monitor which makes it easier for the installer to adjust the image focus during camera setup. The MD-300Np series is equipped with a specially designed mounting adapter and can be installed on a curved surface. The camera supports different power inputs, COO 902.3AF, M12 y DC12V.

Most important features:
• 3M Sony Exmor N Series Outdoor Mini Dome Camera
• Brickcom WDR enhancement technology
• HDTV quality (streaming Full HD 1080p@30fps)
• Wide camera angle adjustment with Pan 35°/ Tilt 0-90°/ Rotation 180°
• Intelligent multi-profile sensor management for different environments
• Weatherproof (IP67) and vandal proof (IK10) with elegant design
• Wide viewing angle and easy-to-adjust focus
• EN50155 certified with anti-vibration and anti-shock
• Support for 3G/4G wireless connectivity (WiMAX / LTE)
• Built-in Micro SD slot / Conector TV-Out
• PoE (802.3of) / conector M12 / DC12V

Complete range of network cameras 5 megapixels

Brickcom has also announced a complete line of cameras 5 megapixels. This series includes fixed box models (FB-500A), fixed dome (FD-500A), anti-vandal dome (VD-500A), cube (CB-500A, CB-502A, WCB-520A), mini domo (MD-500A), mini box (MB-500A) and bullet (OB-502Ap). The series of 5 megapixel offers crystal clear image quality and multiple 'smart camera' features such as a unique design for low-light applications and an intelligent multi-profile sensor management system for different environments. The Brickcom camera series is an ideal solution for surveillance applications both indoors and outdoors such as stores., airports, railway stations, buildings, urban surveillance and traffic control.

Superior HDTV video quality

The network camera series 5 Brickcom's megapixel resolution provides a range of resolutions 5 megapíxeles y vídeo Full HDTV ‘en tiempo real’ a 1080p@30fps. The entire series supports H.264, Motion JPEG and MPEG-4 in multiple streams to give installers different options for video configuration. The series of 5 megapixel uses a 1/2.5 sensor″ providing crisp, sharp videos in day and night applications.

Elegant design and smart surveillance software

The series of 5 Megapixel is designed with powerful software features to maximize the camera's capabilities allowing it to adapt to variable environments while providing optimal video quality. The intelligent multi-profile sensor management system supports 5 profiles, allowing users to configure multiple image parameters, like the shine, contrast and exposure. This will allow the camera to better capture video surveillance in changing lighting environments.. Profiles can be set to change automatically according to the user-defined schedule. Up to three set pre-configured profiles (Day, Evening, y Sunset) and two user-defined profiles are provided on the camera for unprecedented flexibility.

SD/SDHC/Micro-SD card inserted

The series of 5 Brickcom megapixel module supports Power over Ethernet and an integrated SD/SDHC/Micro-SD card slot for pure IP installation. With SD/SDHC/Micro-SD card inserted, the camera can record the video locally, and the user can play the video clips directly on the webcam UI or download them for viewing at a later time. With live view functions, In-camera recording and playback, network camera series 5 Brickcom Megapixel is a complete standalone surveillance system.

Most important features:
• Intelligent multi-profile sensor management for different environments
• HDTV quality (streaming Full HD 1080p@30fps)
• Unique design for low light applications (1/2.5 sensor″)
• PoE 802.3af compatibility
• EN50155 anti-vibration / IK10 vandal proof / IP 67 weather proof / Polar climate -40º C – 60º C
• Recording margin / Micro SD slot
• WPS compatible for easy wireless network setup (WCB-500A / 502A-WCB)
