JVC has recently launched a wide and innovative line of professional cameras, composed of four new ranges of analog and IP CCTV cameras with Lolux and SuperLolux technology, in a wide variety of models, Designed to provide system solutions in broadcast applications, Industrial & Security.

JVC Professional Europe has added to its catalog four new lines of CCTV cameras, including innovative analog and IP products, Suitable for a large number of applications and environments. As a manufacturer of innovative video surveillance cameras, JVC is very well positioned to supply CCTV cameras that provide higher quality images. In these professional analog and IP cameras have been incorporated a series of key technological developments, including H.264 High Profile and Super LoLux technology, All with a high quality of construction.

Super LoLux HD Cameras

blankSuper LoLux HD cameras combine high-performance DSP with CMOS sensors that provide 1920 high-definition resolution×1080 and offer multi-codec support, including MJPEG, MPEG-4 and H.264 High Profile. The new cameras, -A variety of case models, Integrated lens, Mini-dome, Outdoor and housing dome- incorporate JVC Super LoLux HD technology to achieve the sensitivity of the brand's CCD models, plus the new Clear Logic Video Intelligence image processing (C.L.V.I.) that compensates for backlight and digitally removes fog or smoke for a clearer image.

Other features include auto rear focus, SD card recording, motion detection, Privacy mask and a variety of built-in video analytics features, including active tamper detection and audio detection. Cameras comply with ONVIF and PSIA standards for network cameras, as well as a wide variety of leading video management software platforms (Vms), including Milestone's XProtect. An MTBF of 90.000 hours proves its reliability.

• Full HD resolution via 1080p CMOS sensor
• Box models, of bullet, Integrated and mini-dome (Indoor and outdoor dome)
• Super LoLux HD low-light performance
• Minimal illumination: 0.15 lux in colour and 0,025 Lux in black and white
• Super LoLux H.264 High Profile codec
• Triple distribution, double and single flow
• Clear Logic Video Intelligence
• Focus help and detailed focus mechanism
• Motion detection
• ExDR (Extended dynamic range)
• 3D noise reduction
• PoE or PoE power options 24 Ⅴ

LoLux HD Cameras

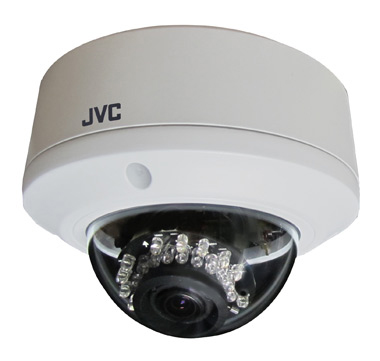

blankThe new range of LoLux HD cameras offers a 1080p CMOS sensor with SD card recording and ONVIF support. There are three models in the LoLux range: a box camera, indoor mini-dome and outdoor mini-dome cover with IP66 rating, each with 2D digital noise reduction, motion detection, wide dynamic range, Alarm and audio support.

• 1080p CMOS sensor
• Box and mini-dome models (Dome for indoor and outdoor)
• Integrated varifocal HD lenses (domes only)
• Real Day/Night with IR LED (Outdoor dome only)
• SD card recording
• ONVIF support
• DNR 2D
• IP66 and vandal protection (Outdoor dome)
• PoE or 12/24V power options

blankSuper LoLux Cameras 2

Thanks to Super LoLux technology 2, New analog cameras deliver exceptional performance and accurate color reproduction, even at near-zero light levels. The range consists of two 1/3 box type cameras″, a 1/2 box camera″ and two dome cameras. The high-resolution images of 600 TVL controlled with DSP of 14 Second generation bit, Keep images clear.

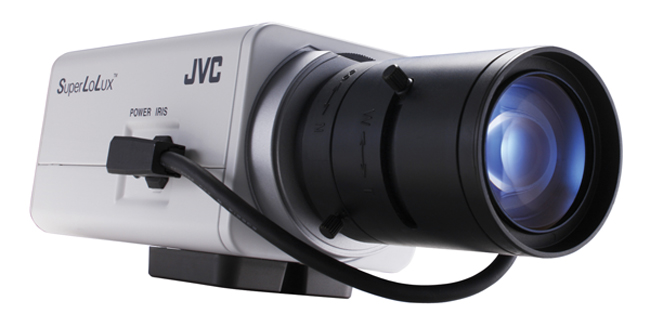

And to meet the demands of modern traffic control, TK-9510 camera features Clear Logic Video Intelligence, that automatically adapts to provide crisp, clear images in bad weather conditions. The cameras also feature the ExDR function (Extended Dynamic Range) Plus, allowing them to clearly show people and features in the foreground, even when they are in front of a brightly lit background. With an MTBF of 77 To 93.000 Hours, and an energy consumption of 40% Lower than conventional models, These cameras can be trusted, whatever the conditions.

• 600 TVL with 14-bit second-generation DSP
• Box and mini-dome models (Indoor and outdoor dome)
• Super LoLux low-light performance 2
• Minimal illumination: 0,025 lux in colour and 0,015 Lux in black and white
• Clear Logic Video Intelligence (TK-C9501E/TK-C9511EG only)
• Focus help and detailed focus mechanism
• Motion detection
• ExDR (Extended dynamic range)
• 3D noise reduction
• White balance area
• LCD/CRT display mode
• Privacy mask
• Mains or adapter powered (12/24V or 230VAC)

LoLux IR Cameras

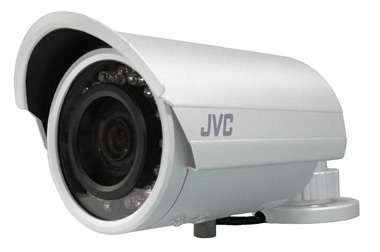

blankTwo new low-light analog CCTV cameras have been developed to meet the demands of low-light applications, combining high-resolution images with the latest integrated IR LED technology. LoLux IR bullet camera TK-T8101WPRE outdoor and Lolux IR mini dome camera TK-T2101RE indoor supplied 600 Tvl, real day/night, Easy WDR and DSP 10 Bit, offering an excellent price/performance ratio. Both models come with a range of useful safety features, including motion detection, privacy mask and an IR cut filter, while automatic high-light compensation for extreme white light is perfect for changing conditions.

• CMOS type sensor 1/3
• Bullet and mini-dome models
• 600 Tvl
• IR LED and IP66 rated (only the bullet type)
• Minimal illumination: 0.02 lux in color
• Real Day/Night with IR cut filter
• IR distance: TK-T8101WPRE 20m / TK-T2101RE 15 M
• Easy WDR (Wide Dynamic Range)
• Digital noise reduction
• Motion detection
• White balance: ATW / Manual / User / Push / Push Blocking
• Powered by 12/24V adapter
