This system, called 'Access' (Microaccess), can be integrated into any video intercom and only requires an Android app, tag or card to use the smarphone as a key to the access and control system for opening doors.

idtronica-systems-uacces

The Spanish technology company IDTronics Systems has applied wireless technology to the field of home automation to improve security and accessibility with 'Access' (Microaccess), access control based on NFC technology (Near Field Communication), that allows you to open doors from your mobile through an app (Android system), keychain or tag card; the same technology banks use for smartphone payment.

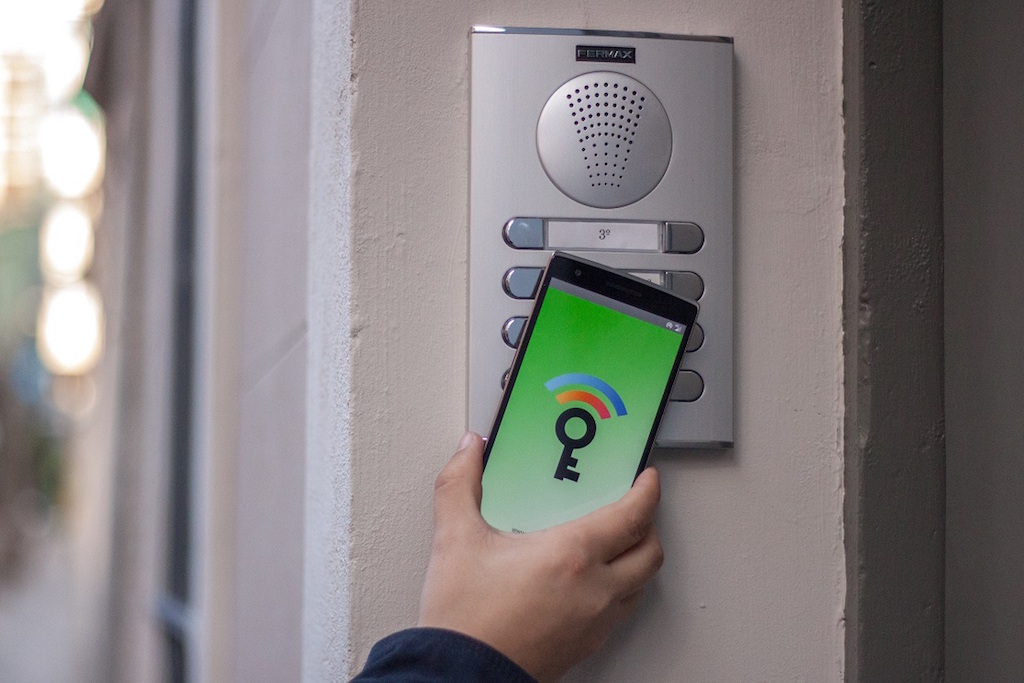

Access control works by bringing your mobile closer to an electronic video intercom, like a conventional key in buildings, offices and houses. The company has created this simple and secure system in order to avoid problems in case of loss or theft, short-term rentals and improve the accessibility of special needs groups.

idtronica-systems-uaccesAs explained from IDTronic Systems, "we always want to protect our facility on high-turnover rentals, where sometimes security is low, so having access control with NFC technology is ideal, instead of handing over the key. In addition, there are people who have difficulty inserting a key into the lock, turn and push the door, so a product like this is also suitable to improve the accessibility of certain groups, as elderly persons and/or with disabilities".

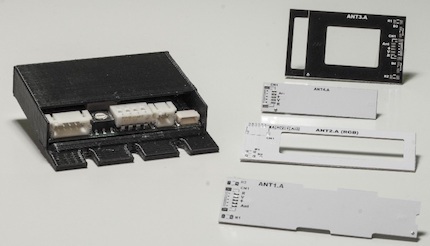

Access is made up of a mobile id reader and app that allows you to replace conventional cards and use your mobile phone as an access tool in different types of installations. Its integration into a video intercom does not require works or drills, as it is compatible with the boards of the main manufacturers at the national level and its control module connects directly to the doorman's electronics and an antenna.

This system has management cards, for the control of highs and casualties and the keys themselves (keychain cards, tags and app). The company has in the development phase applications to facilitate the management of the installation.

Key features

  • RFID system compatible with Mifare Classic, Desfire EV1, Ntag213 and NFC.
  • Programmable opening time for installation and customizable for each user, just like the time control for installation.
  • System power: 12-30 Vdc – 12 Vrms.
  • Maximum consumption: 80 Ma.
  • Standby consumption: 30 Ma.
  • Maximum number of users: 3.100.
  • Maximum number of events: 2.000.
  • Environmental conditions: From -20 at 70oC.
  • Compatible Brands: Fermax, Golmar, Tegui and Auta.
