Equipped with a CMOS sensor 1/1,8 inch with progressive scan, IDOM 360º of Idis camera supports a resolution of 2560×2048 pixel and generates views of FishEye, panoramic and multiple combinations of dewarping.

IDIS DC-Y1513

The Fish Eye camera IDOM 360º of IDIS, distributing CCTV Center, is designed to capture high resolution images from a single location without blind spots and providing a total view of 360 ° when mounted on ceiling, floor or on a table and a panoramic view of 180 ° if installed on wall.

IDIS DC-Y1513Equipped with a CMOS sensor 1/1,8 inch with progressive scan, IDOM 360 ° camera supports a resolution of 2560×2048 pixel and generates views of FishEye, panoramic and multiple combinations of dewarping.

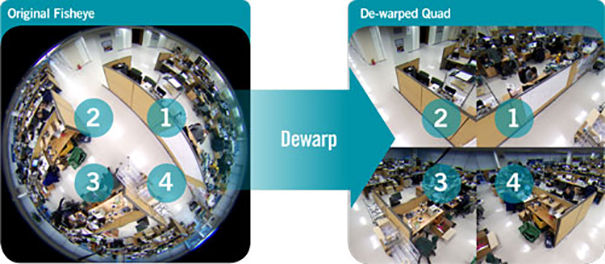

When using the camera dewarping, the 360º IDOM offers multiple combinations of view to facilitate monitoring of the operators: original Fish Eye view, panoramic view, Double panoramic, rectangular, Quad, etc.. Other additional features include Micro SD/SDHC card storage, I/O alarm and a design of thin profile that makes the camera ideal for shops, stores, restaurants and offices.

IDIS DC-Y1513Like other cameras Idis DirectIP, the 360º IDOM can manage 4 video streams to optimize the quality of live display (Direct 1 for full-screen and 2×2; Direct 2 for formats 3×3, 4×4 and 6×6) allowing you to save bandwidth without losing video quality.

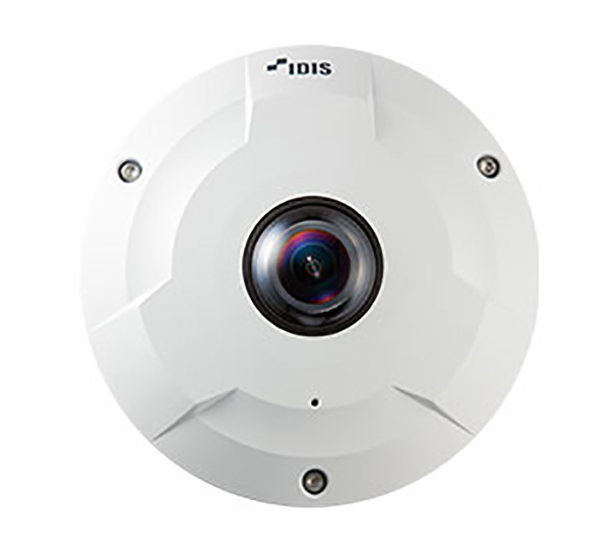

This Idis video surveillance equipment is available in two models, DC-Y1513, and the DC-Y1513W. The first is a dome with an optical camera of 1,45 mm. The second is presented as a vandal-resistant system that complies with the standard IK10 and as it is intended to be used outdoors with the IP66.

Features:

IDIS IDOM Fish Eye

  • Easy configuration with NVR Idis DirectIP.
  • High resolution 5 Megapixel (2560×2048).
  • Various combinations of views.
  • 6 dewarping modes.
  • On the side of the camera Dewarping.
  • Day/night (ICR).
  • Micro SD/SDHC card.
  • Alarm inputs/outputs.
  • PoE/12VDC power supply.
