The new mobile network video recorder SRM-872 Samsung Techwin has been designed to withstand all kinds of situations on board buses, Trams, Trains and trucks, which is complemented by mobile cameras from this manufacturer to offer a complete security solution to this industry.

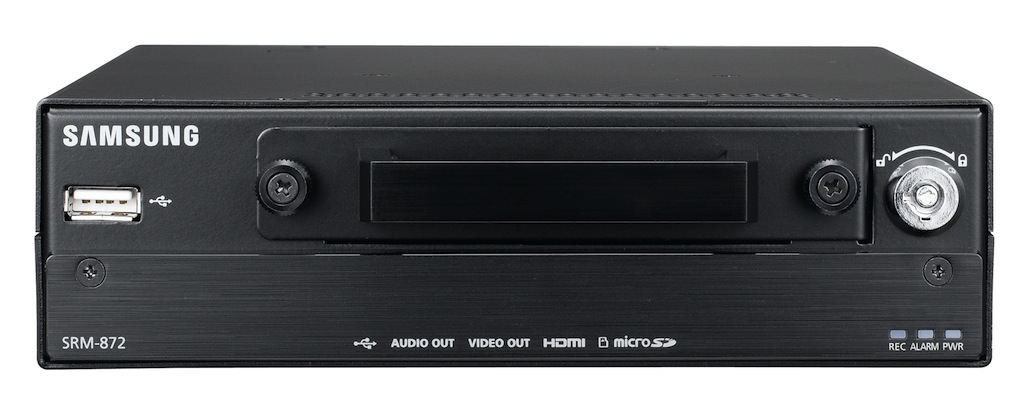

Samsung Techwin SRM-872

Developed in response to the growing demand from the transport sector for solutions based on IP networks that are resilient, Samsung Techwin has available specifically for this environment the network video recorder SRM-872, along with two IP camera models, with which it offers a very effective mobile video surveillance recording and monitoring solution that satisfies Onvif regulations.

With SRM-872 mobile video recorder, Designed to withstand all kinds of situations on board buses, Trams, Trains and trucks, Security personnel can review high-definition, latency-free images of fast-moving objects to investigate alarms or incidents.

Samsung Techwin transport sectorThis NVR for the transport sector, offering a bandwidth of 64 Mbps, Records the images captured by the cameras of 2 megapixels to 60 images per second, so that the edges of the images look sharp and clear also simultaneously in its eight channels.

The GPS integrated in the system facilitates the recording of location data and, while the 2.5" hard drive (hot-swappable) Can be easily extracted to preserve video backups, the SRM-872 also supports 3G and Wi-Fi modules, that allow you to recover recordings 'on the fly'.

With a compact size, SRM-872 can be easily placed in or under the glove compartment of the vehicle and, thanks to the integrated PoE switch, Installation times are reduced. This NVR has an integrated heater to withstand low temperatures (-25OC) and has received or been certified in accordance with EN-50121-3-2, EN-5012-4, EN-50155, EN-61373 and EN-609050-1, as well as the approval of the European railway industry.

Mobile cameras on board

rp_Samsung-Techwin-SNV-6012m-605x490.jpgTo complete this security solution for the transport sector, Samsung Techwin has developed two models of mobile cameras -SNF-7010VM and SNV-6012M- with digital image stabilization (Dis), which corrects the effects of vibrations on displacement and helps to significantly reduce the effects of a moving shutter such as, For example, a wobbly or tilted image. That way, Images can be viewed in high quality.

The SNF-7010VM, of 3 Megapixel (1.080Q), Makes it easy to select different display options: Fisheye 360º, panoramic view, Double panoramic view, Quadrant view and rectangle view, In addition to the user viewing the area of their preference. This model, anti-vandal IK10, has four polygonal motion detection zones and digital PTZ, as well as progressive scanning technology thanks to which the contours of people and moving cars are clearly visible.

Samsung Techwin SNF-7010The network flat dome of 2 megapixel and Full HD SNV-6012M captures high-quality color images in low light conditions, From 0,03 Lux, and has an ultra-fast frame rate of 60 1,080p fps.

Improved dynamic range expansion technology, integrated in the WiseNetIII DSP chipset of this model, delivers performance greater than 120dB, and produces accurate images in scenes where bright and very dark areas coexist. Thanks to the fog function of this model, the clarity of images captured in adverse environmental conditions can be improved, like rain, smoke or fog.

Both cameras, with IP66 housing and weather resistance, comply with EN50121 regulations related to electromagnetic emissions in railway environments, as well as with the EN50155 standard.
